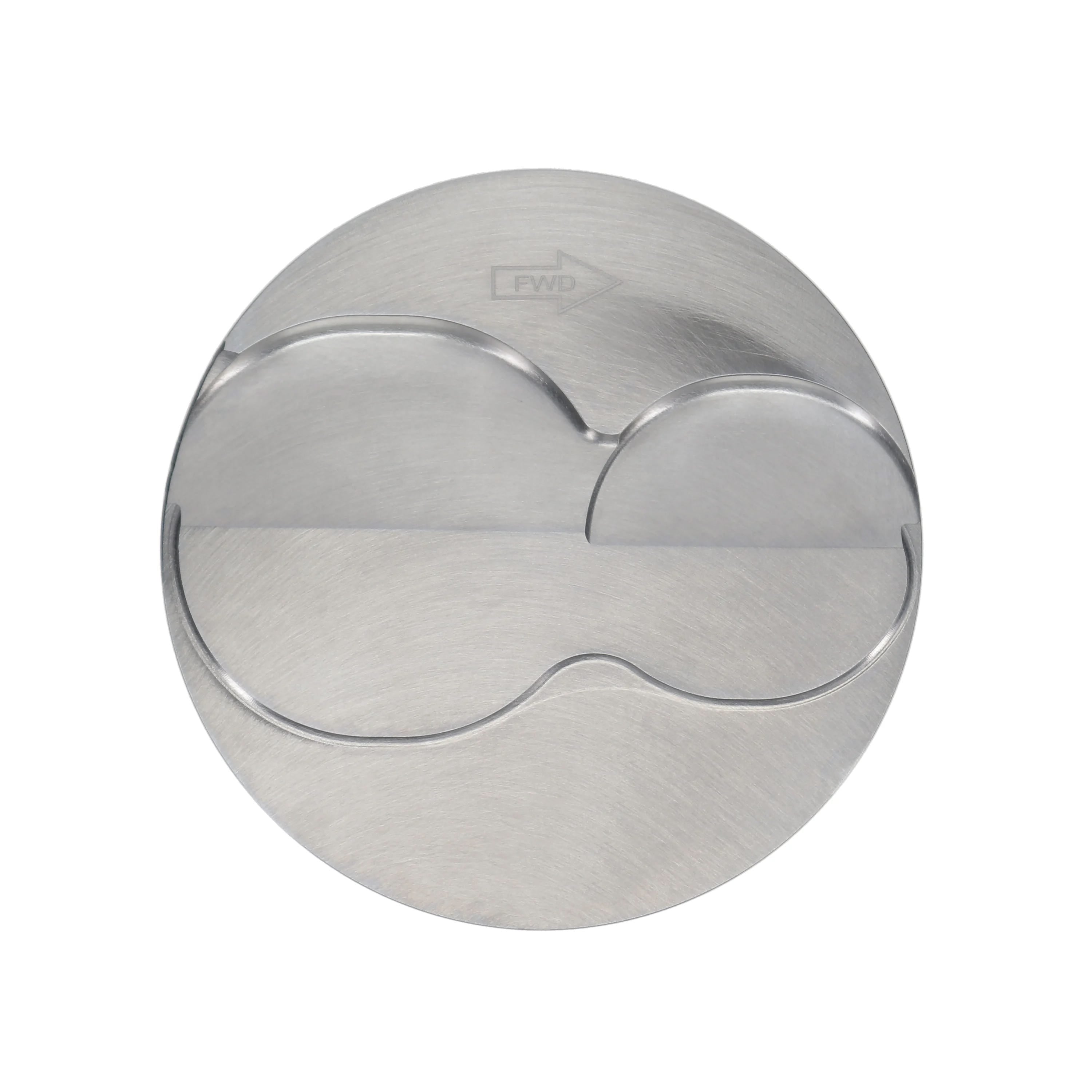

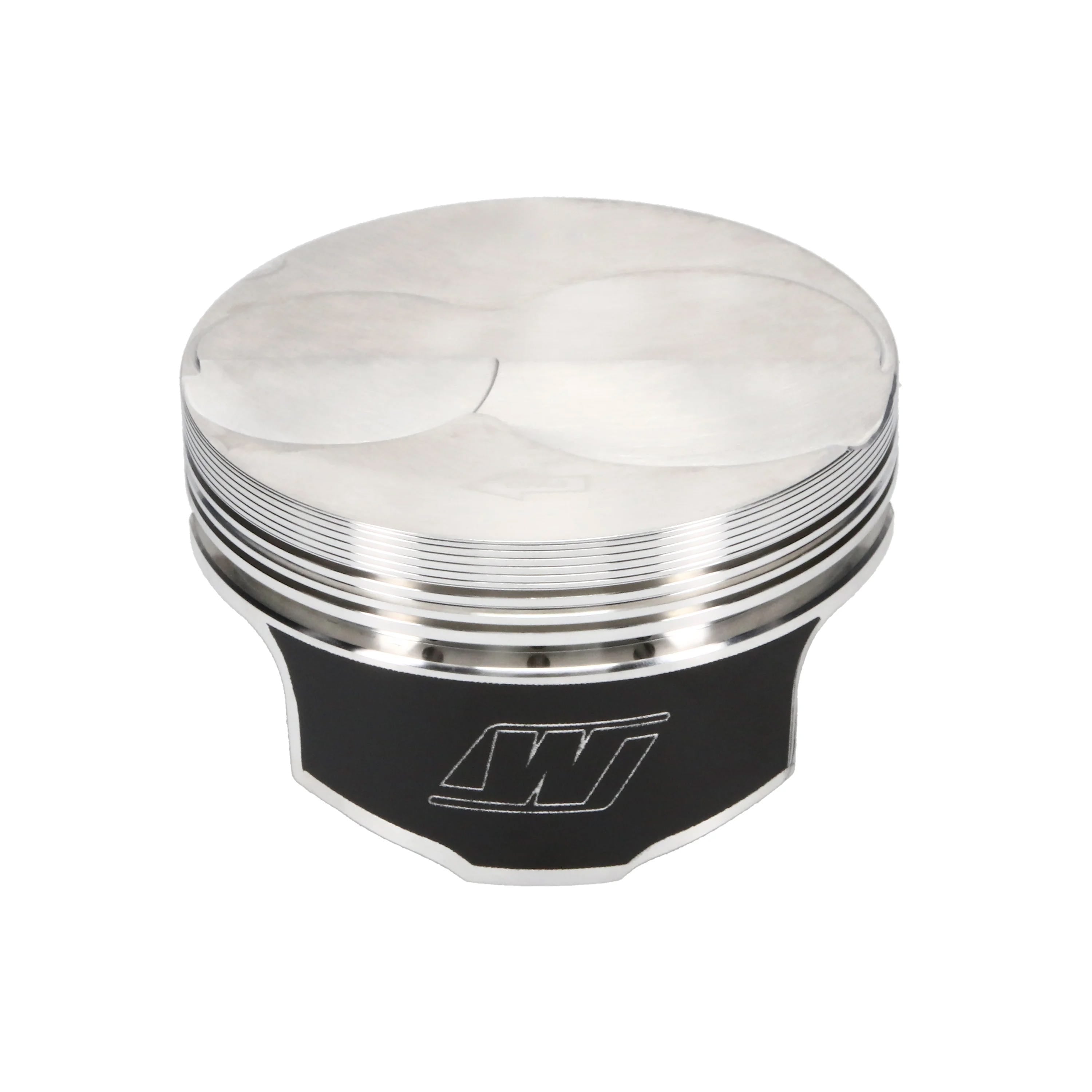

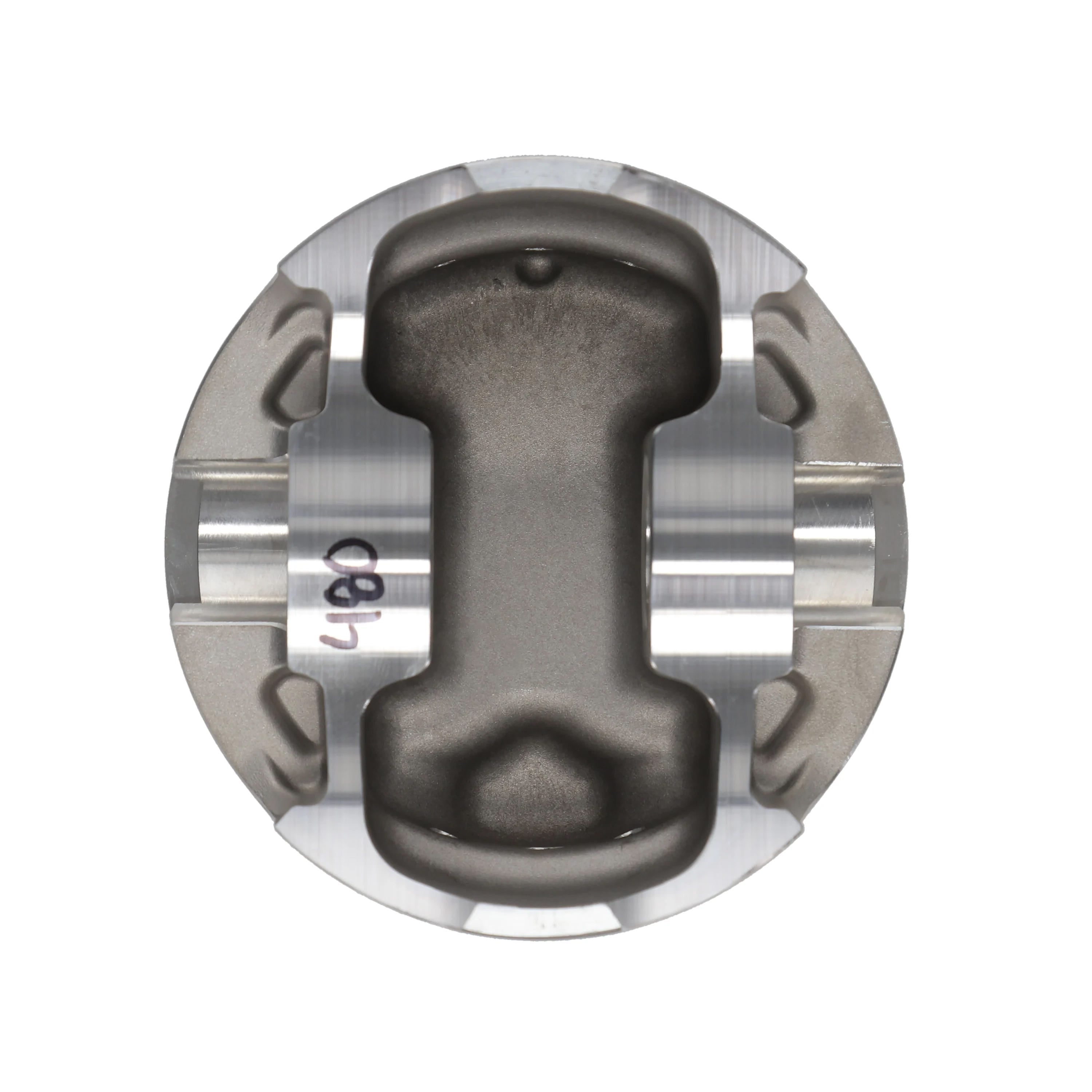

WISECO LS PISTON - RIGHT SIDE - 4.005" BORE - 4.000" STROKE - 3CC DOME - 6464RX05

This line features dedicated forgings, specially designed valve pockets, unique dome and crown designs, optimized skirt profiles and precision machined ring grooves. Other features such as dome brushing, skirt coatings, gas ports, and advanced ring packages will be found on many of these pistons. Wiseco’s late model EFI line for Chevrolet LS-based platforms are specially designed pistons built for high boost and nitrous, yet designed to run quietly on the street with a long lifetime. Custom piston variants are available as well if you have special needs outside of our shelf stock parts.

Bore Diameter - 4.005 IN
Compression Height - 1.1105 IN
Piston Volume - -3.00 CC
Piston Material - 2618
Skirt Coating - Yes
Forging Type - Strutted
Piston Quantity - 1
Ring Set Included - Yes
Top Compression Ring Thickness - 0.047 IN
Second Compression Ring Thickness - 0.047 IN
Oil Ring Thickness - 3.0 MM
Wrist Pin Included - Yes
Wrist Pin Material - 5115
Wrist Pin Outer Diameter - 0.927 IN

Features
