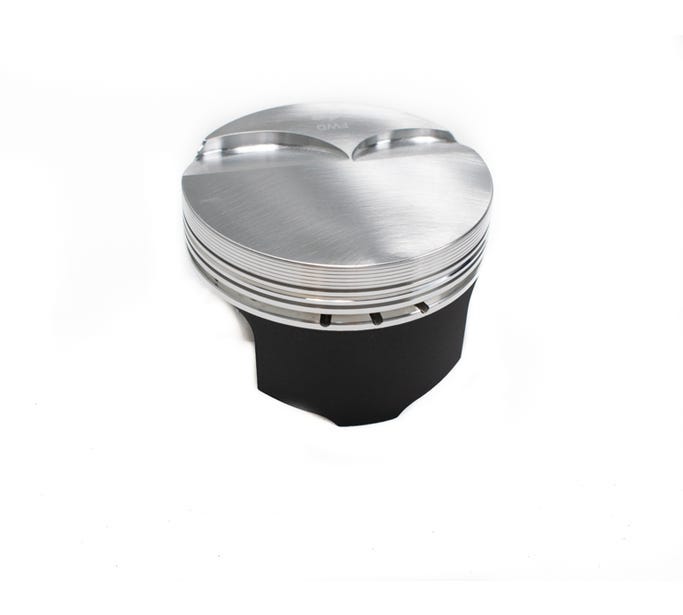

LJMS/WISECO BOOSTED PISTON SET - 3.780" BORE - 3.622" STROKE - 3.2CC FLAT TOP - AW-07333
BTR and Wiseco teamed up to create this custom piston set for stock bore, stock stroke 5.3 engines. These are flat tops with valve reliefs for boosted applications.
The ring pack is a 1.0mm/1.2mm/2.8mm combination with XX steel nitride top rings and napier second rings.
This also includes upgraded Tool Steel, .200" wall S718 pins.
Compression Height is 1.300" and requires a 6.125" rod.
Features
| EMS Code | EMS: Code 3 |
|---|---|
| BTR SKU | AW-07333 |
| Length | 28.000000 |
| Width | 11.000000 |
| Height | 7.000000 |
| Weight | 14.000000 |
| Brand | Wiseco |
| Part Type | Pistons |
| Piston Style | FLAT TOP |
| Piston Volume | 3.2cc |
| Piston Bore Size | 3.780" |
| Piston Stroke | 3.622" |
| Piston Pin Size | .927" |
| Rod Length | 6.125" |
| Engine Type | Gen III/Gen IV LS |
