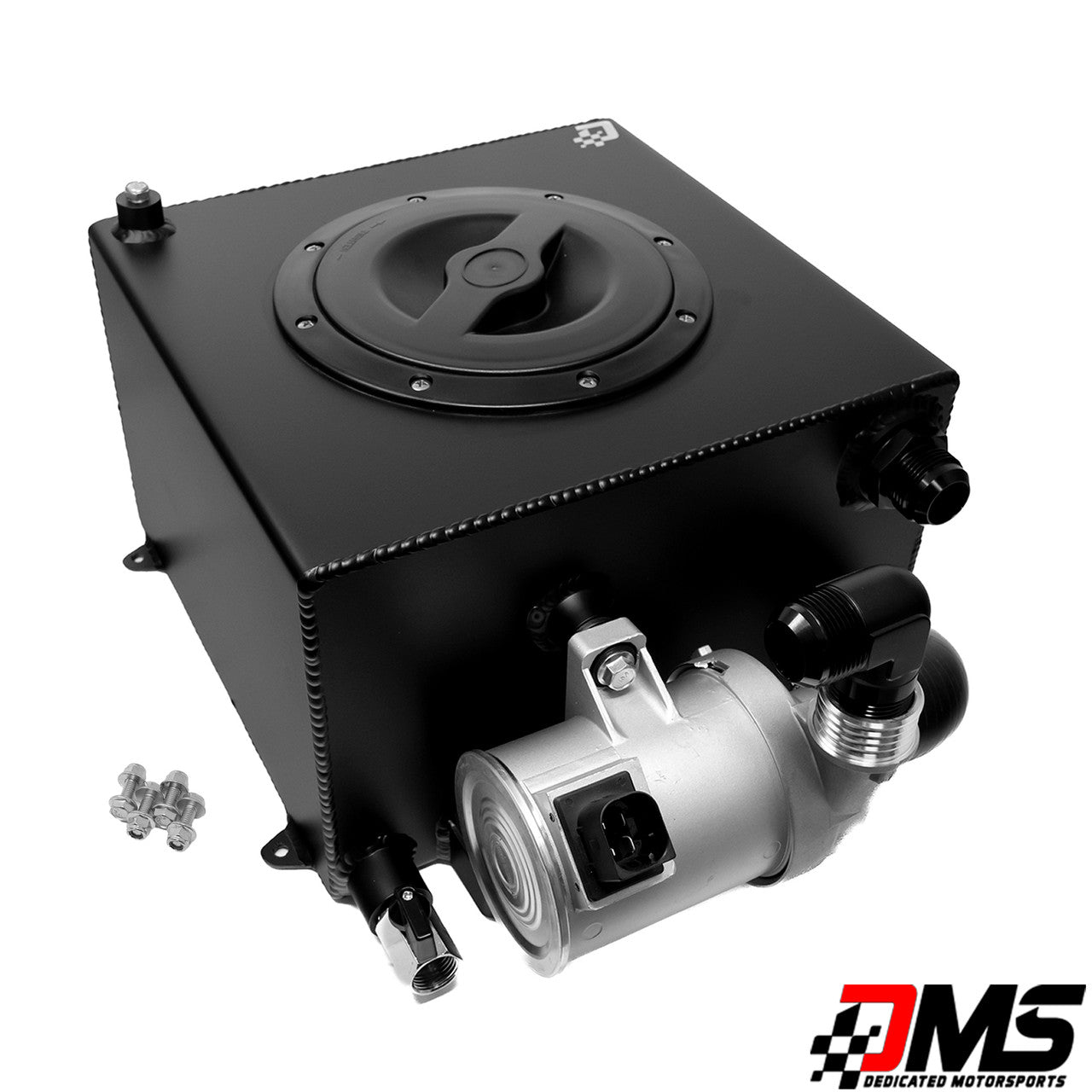

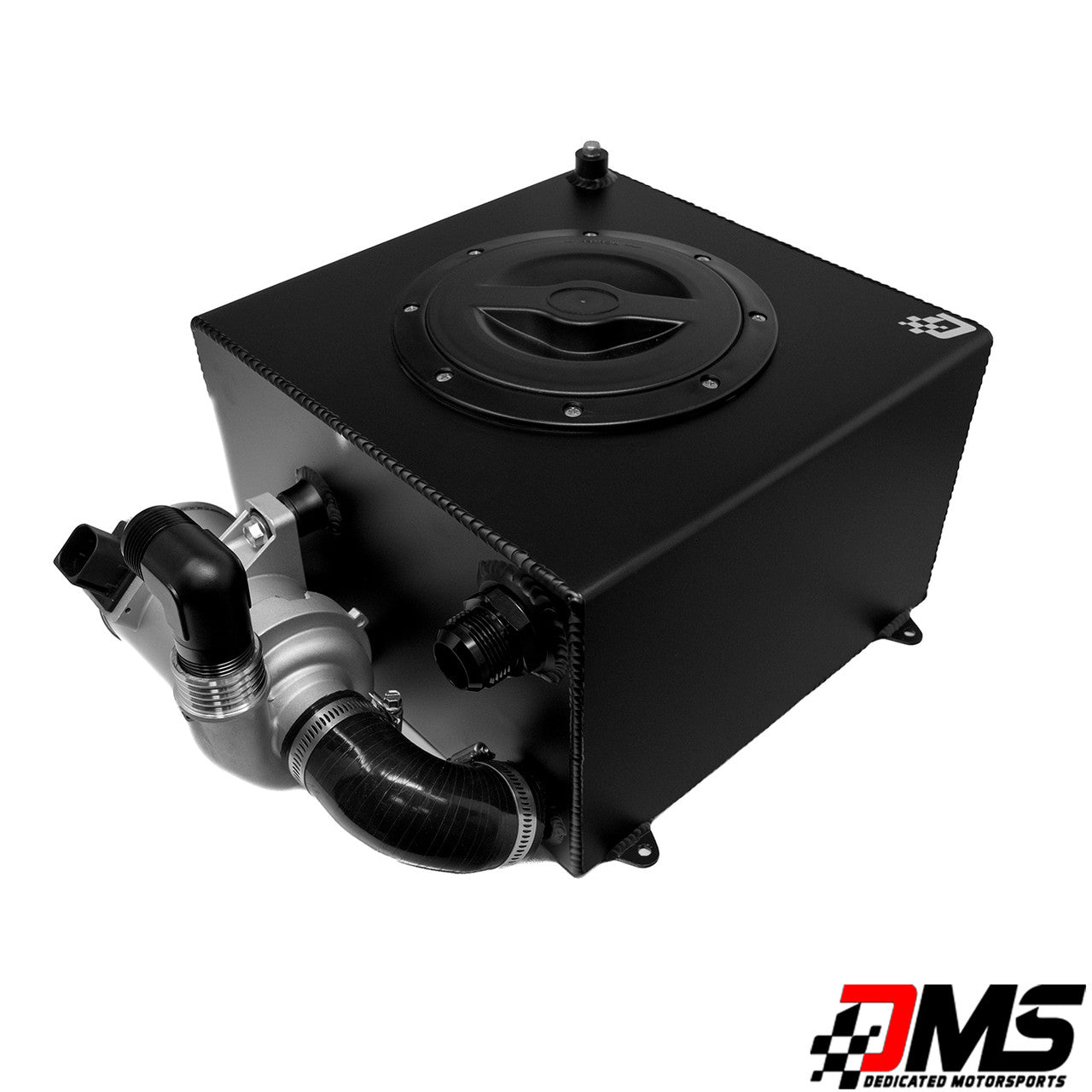

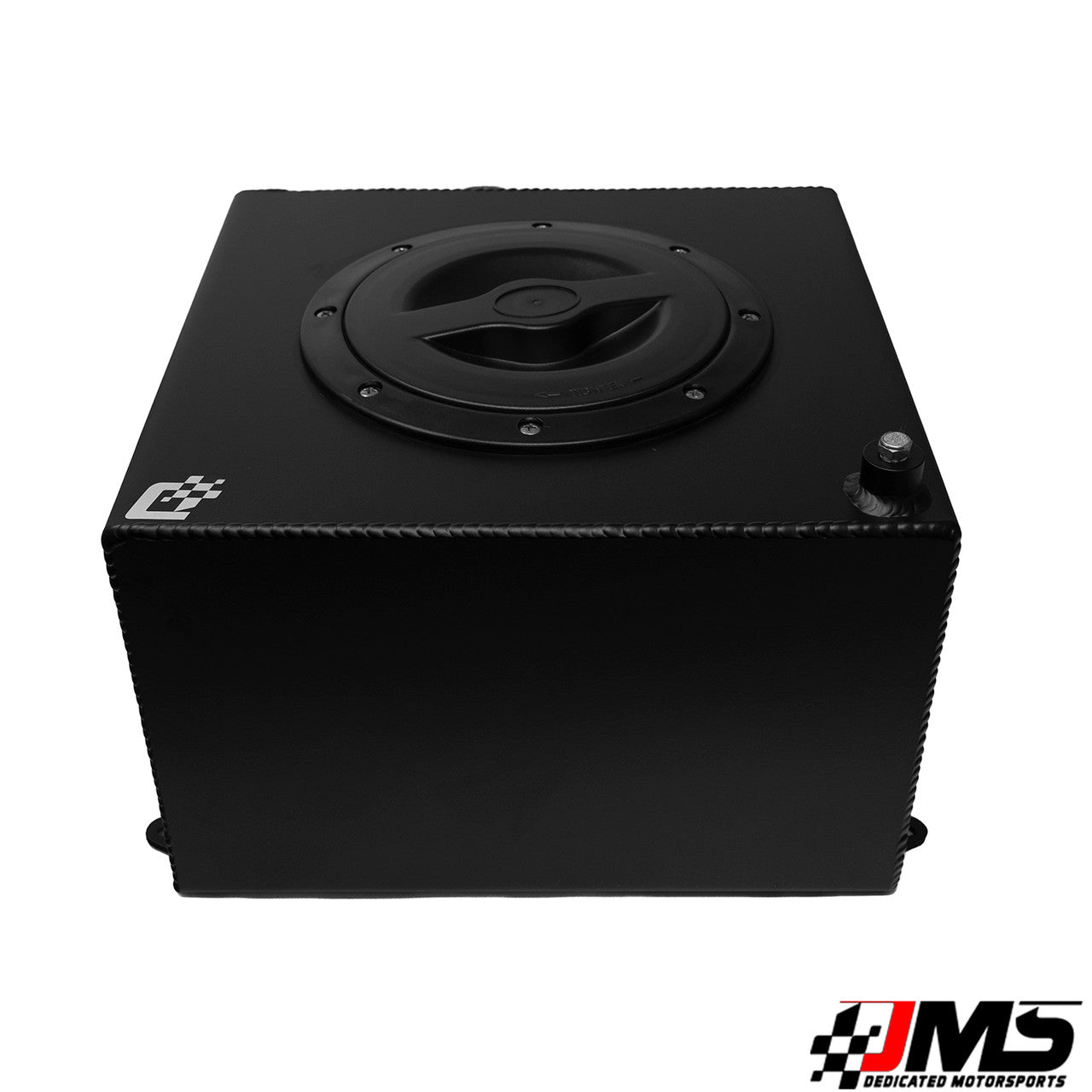

Universal 5 Gallon Ice Tank with Pierburg CWA400 Coolant Pump – High Flow Air-to-Water Intercooler Solution

Looking for maximum cooling performance? The Dedicated Motorsports 5 Gallon Ice Tank with integrated Pierburg CWA400 is the ideal solution for supercharged or turbocharged vehicles running an air-to-water intercooler. Whether you're mounting in the trunk or truck bed, this system is built to handle high-demand cooling with exceptional flow and reliability.

The Pierburg CWA400 is one of the highest-flowing electric coolant pumps on the market, delivering up to 220 liters per minute to keep your intake temperatures low, even under extreme conditions.

This kit includes a full hardware package and offers the option of a pre-assembled heavy-duty wiring harness or a connector kit for a custom install. Everything is designed with performance and ease of installation in mind.

Included in the kit:

• 5 Gallon Aluminum Ice Tank

• Pierburg CWA400 Coolant Pump (approx. 220 L/min @ 0.55 bar)

• Pre-wired harness or connector with seals and terminals

• 6" Plastic Tank Lid

• Silicone Inlet and Outlet Hoses

• ORB Return Fitting

• Billet Outlet Fitting (12AN or 16AN option)

• ½” NPT Drain Valve

• Full Mounting Hardware

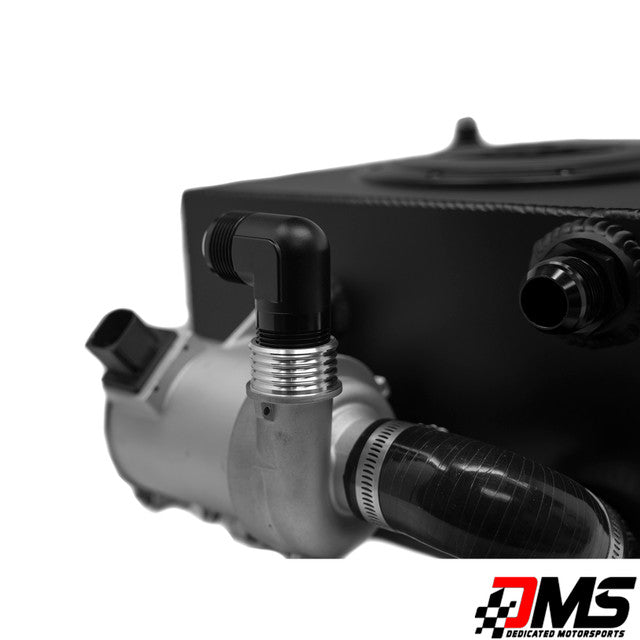

Note: Product photos may show a 90-degree outlet fitting, which is not included. The standard outlet is a 1.5" barb, but it can be tapped for 1” NPT if desired.

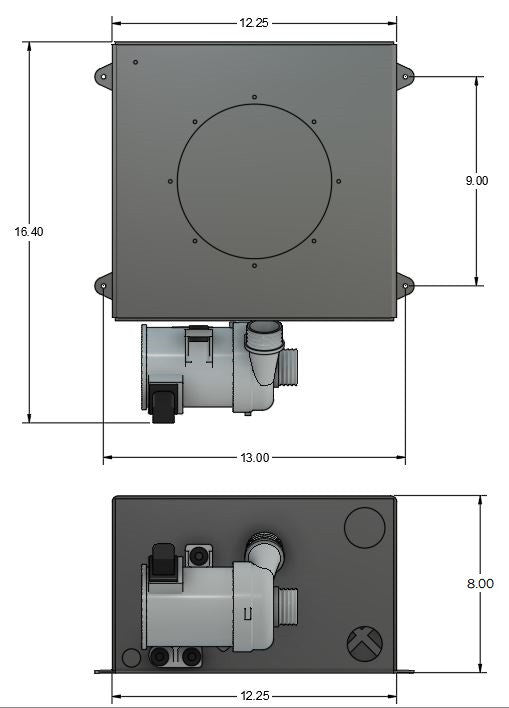

Tank Dimensions:
Please refer to the product photos for detailed measurements.

Pierburg CWA400 Pump Specifications:

• Flow Rate: 220 L/min @ 0.55 bar

• Current Draw: Approx. 35.5 amps

• Speed: Approximately 5900 RPM

• Weight: 4.7 lbs

This tank and pump combination is ideal for high-performance street builds, drag applications, and any forced-induction setup that requires serious cooling capacity. Trusted by racers and tuners across the industry.
