Fore Innovations - L1 - Dual Pump Fuel System for 2018

Gallery
Description

Description

MAP or static referenced direct injection supply fuel system up to 800 rwhp with dual fuel pumps (recommended to run one pump full time, then activate secondary pump under load) with gasoline or race gas only (not E85). Supplies High Pressure Fuel Pump (HPFP) and port injection (and small wet nitrous) Includes in-tank supply system that retains OE transfer, fuel level sender, and EVAP functionality, upgraded feed and return lines, high capacity filtration and check valve, flow through t-block direct mounted on HPFP inlet tube, high capacity F2i regulator with provisions for both static and MAP reference.

Fuel system should not be used with E85 due to limitations with the OE fuel rails. (use L1E or L2 fuel systems instead)

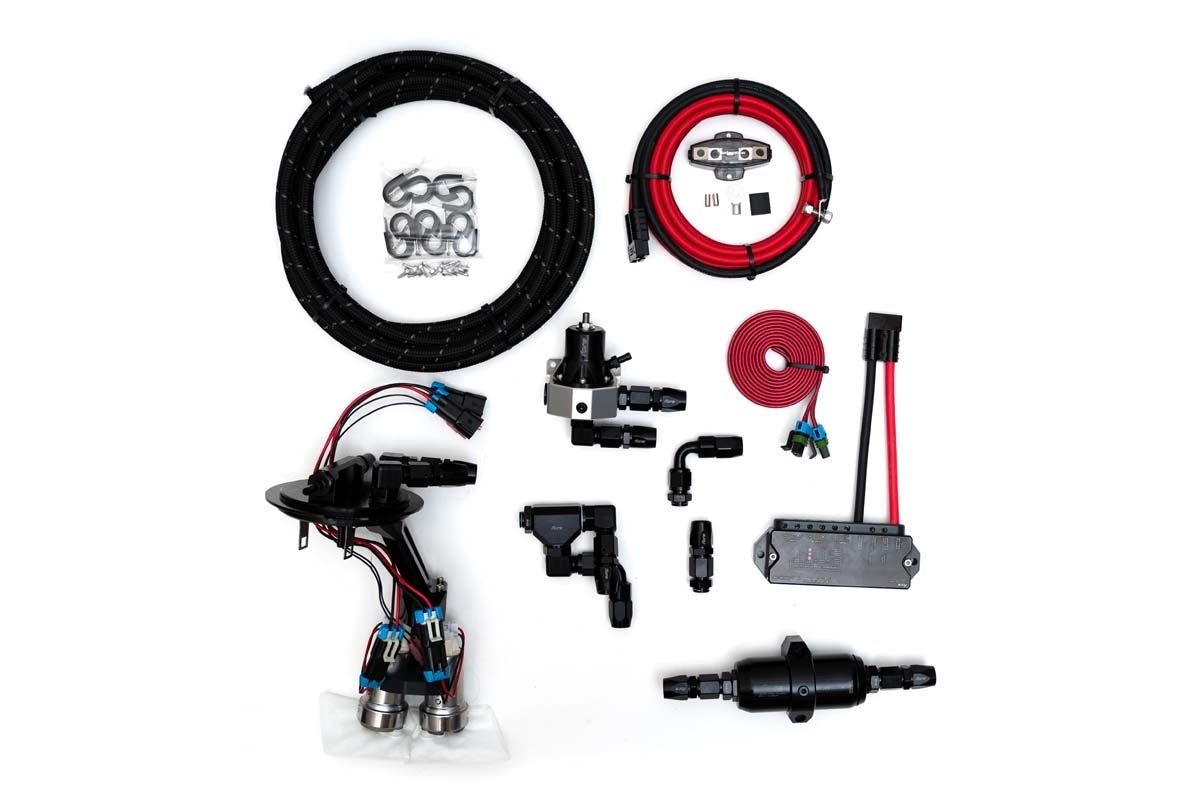

INCLUDES

F-150 Dual Pump Module
F2i Fuel Pressure Regulator (may be configured boost reference or static)
88mm Inline Fuel Filter
T-block to direct mount on HPFP (High Pressure Fuel Pump)
All fittings, hose, hardware required for typical fuel line plumbing

-30 feet of fuel line (your choice of type)
-10 billet compression style hose ends (6 x straight, 4 x 90 degree)
-Qty 5, billet low profile 90 degree AN to ORB swivel fittings
-Qty 2, billet straight AN to ORB fittings
-Qty 1, 3/8 EFI female to ORB-10 male adapter
-Qty 2, 3/8 EFI female to AN-8 male adapters
-Qty 1, ORB-8 plug
-Qty 10, hose straps with stainless mounting screws

FUEL PRESSURE SETTINGS:
1. Fuel pressure with static fuel pressure regulation must be set to [43 psi + maximum boost] or 54 psi (whichever is greater).
2. Fuel pressure with manifold referenced fuel pressure regulation must be set to 54psi during idle. (boost signal after throttle body)
3. Fuel pressure with boost referenced fuel pressure regulation should be set to 58 psi with vacuum off. (boost signal before throttle body)
4. Use L1E or L2 fuel system to operate outside these parameters.

This is a stand alone fuel system. Professional installation and a custom tune is required. Qualified installers and tuners must be able to interface to the OE harness and FPDM, understand proper component placement, hose routing, and deliver the vehicle with factory-like pump prime/on/off logic with no error codes. Fore Innovations will supply basic system schematics and detailed component level instructions, and can provide troubleshooting of the performance and function of our system and components.

This fuel system generates substantially more heat and capacity than the original fuel system. The high powered fuel pumps make much more heat than the factory pump and the composite fuel tank construction acts as an insulator and stores heat. Additionally, the shape of the factory fuel tank limits the pickup capacity of this fuel system. The user (driver) must keep more fuel (than normal) in the tank at all times to minimize heat damage and ensure adequate fuel pickup.

FITS:

2018-2022 F-150 V8

TI Automotive (and Walbro) fuel pumps are sold only with TI Automotive’s warranty. Currently, TI Automotive does not have a warranty on their high performance parts.
