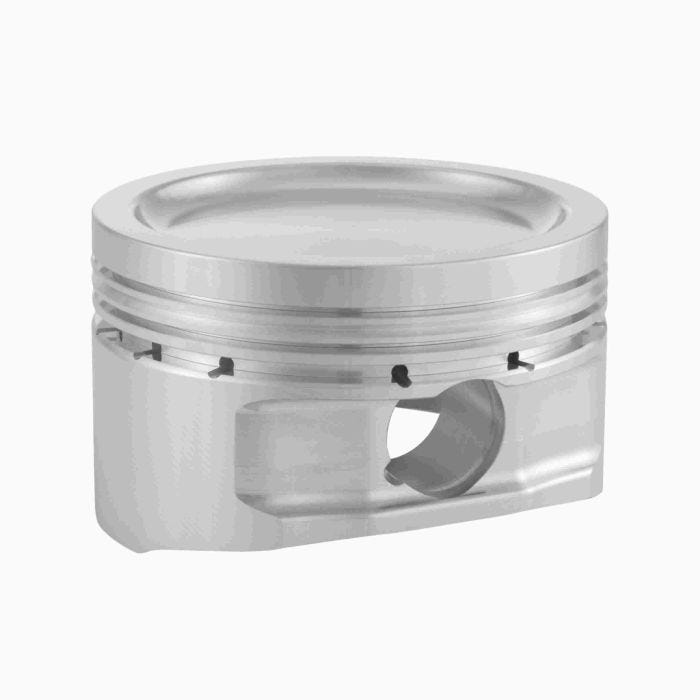

CP BULLET SERIES PISTON SET - 4.075" BORE - 3.622" STROKE - 6.125" ROD - 5.6CC DOME - BLS1035-010
Features:
- Pistons manufactured from 2618 alloy for strength and durability
- Balanced to + or – 1 gram
- Dual forced pin oilers
- Contact reduction grooves
- Accumulator Grooves
- Contemporary ring set included (Comes standard with 1.5mm x 1.5mm x 3.0mm ring pack that consists of High-grade Steel Gas Nitrided barrel faced tops with Taper Hook Groove Napier second rings and a 3-piece soft nitrided rail flex vent oils, specially designed for severe duty applications such as nitrous blowers and turbo engines.)
- Forged side relief
- Chromoly wrist pins with wire locks
- FEA designed forging
- Tight tolerances
- USA made
Note on rod small end widths - These piston forgings have a minimum pin boss span of 1.060, this is because they also use a 2.250 long wrist pin, to this gives the wrist pin .595 of engagement In the pin bore. Many aftermarket rods including BTR's 6.125 LS rod set (BTRROD6125H1-8) have a small end width of 1.060 or more and will need to have the small end narrowed by a respectable machine shop by .080-.100" for proper fitment. Carrillo & Bullet rods use a .900-1.000 wide small end, so there is no need for additional small end clearancing.
Features
| BTR SKU | CPC-BLS1117-005-8 |
|---|---|
| Length | 10.000000 |
| Width | 10.000000 |
| Height | 5.000000 |
| Weight | 15.000000 |
| Brand | CP/Carrillo |
| Part Type | Pistons |
| Piston Style | DISH |
| Piston Volume | 8.0cc |
| Piston Bore Size | 4.005" |
| Piston Stroke | 4.000" |
| Piston Pin Size | .927" |
| Piston Rings Included | Yes |
| Rod Length | 6.125" |
| Engine Type | Gen III/Gen IV LS |
