BTR TRINITY TUNNEL RAM BASE - NATURAL - TRP-TNL
BTR's amazing depth of Trinity runners and plenum options has just grown! The BTR Trinity Tunnel Ram base allows you to add plenum volume, change lids out for commonly available 12-bolt perimeter lids like the Holley Hi-Ram, or adding an Air to Water sandwich intercooler or intercooled upper like offerings from 417 Motorsports and other fabricators! The TNL accepts all current Trinity runner options (Except HEMI - See TRP-TNL-H and TRP-TNL-H-BLK for Gen III HEMI plenum options) and is available in black or natural finish. Just add your runners & lid, and get ready for the winners' circle!
Features:
- ALL-AMERICAN! Designed, tested, cast and machined in the US!
- 350ci plenum volume (accounding for runner protrusion)
- 12-bolt Hi-Ram style mounting boss for a multitude of upper plenum choices - M6 x 1.0 Thread

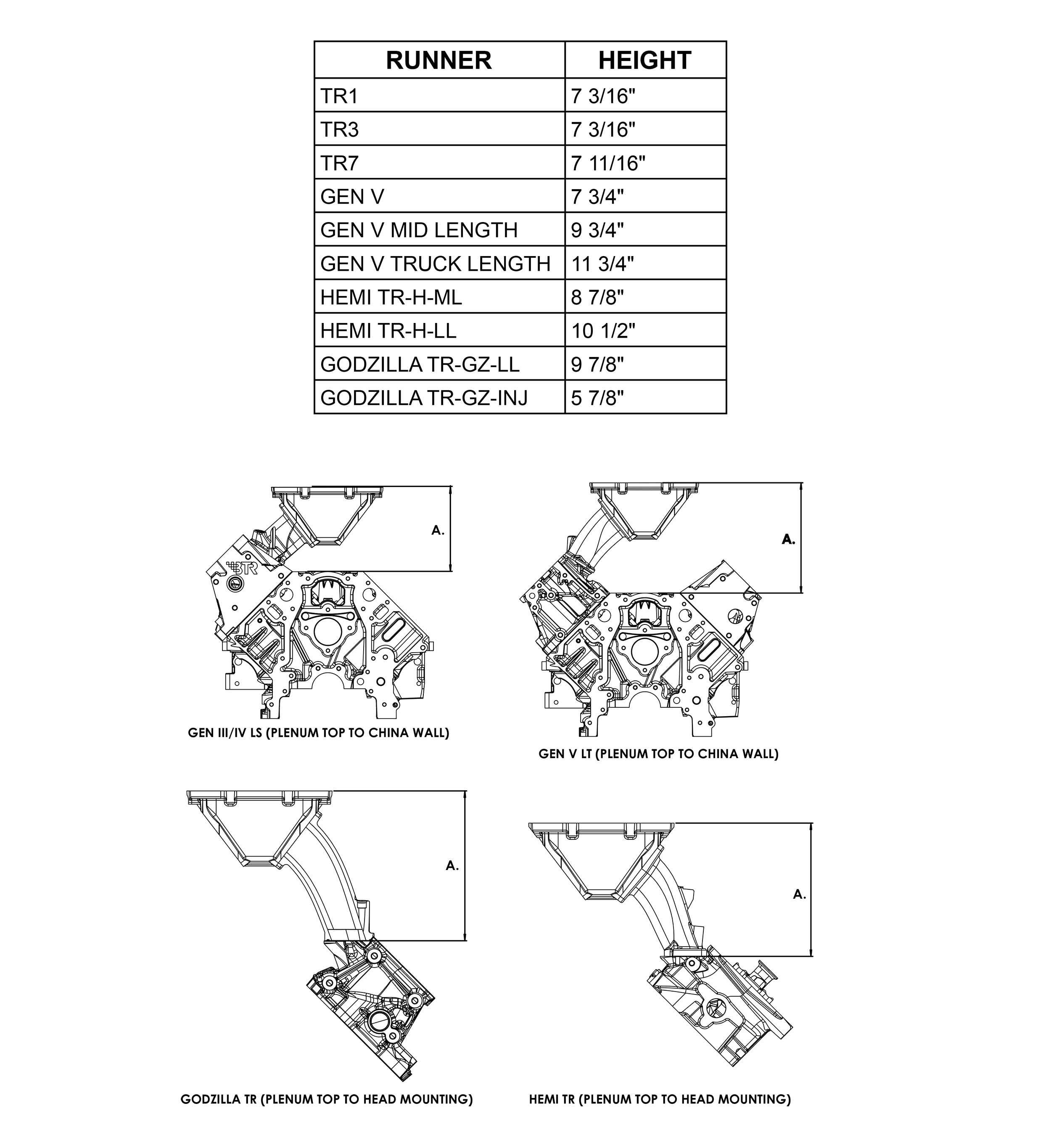

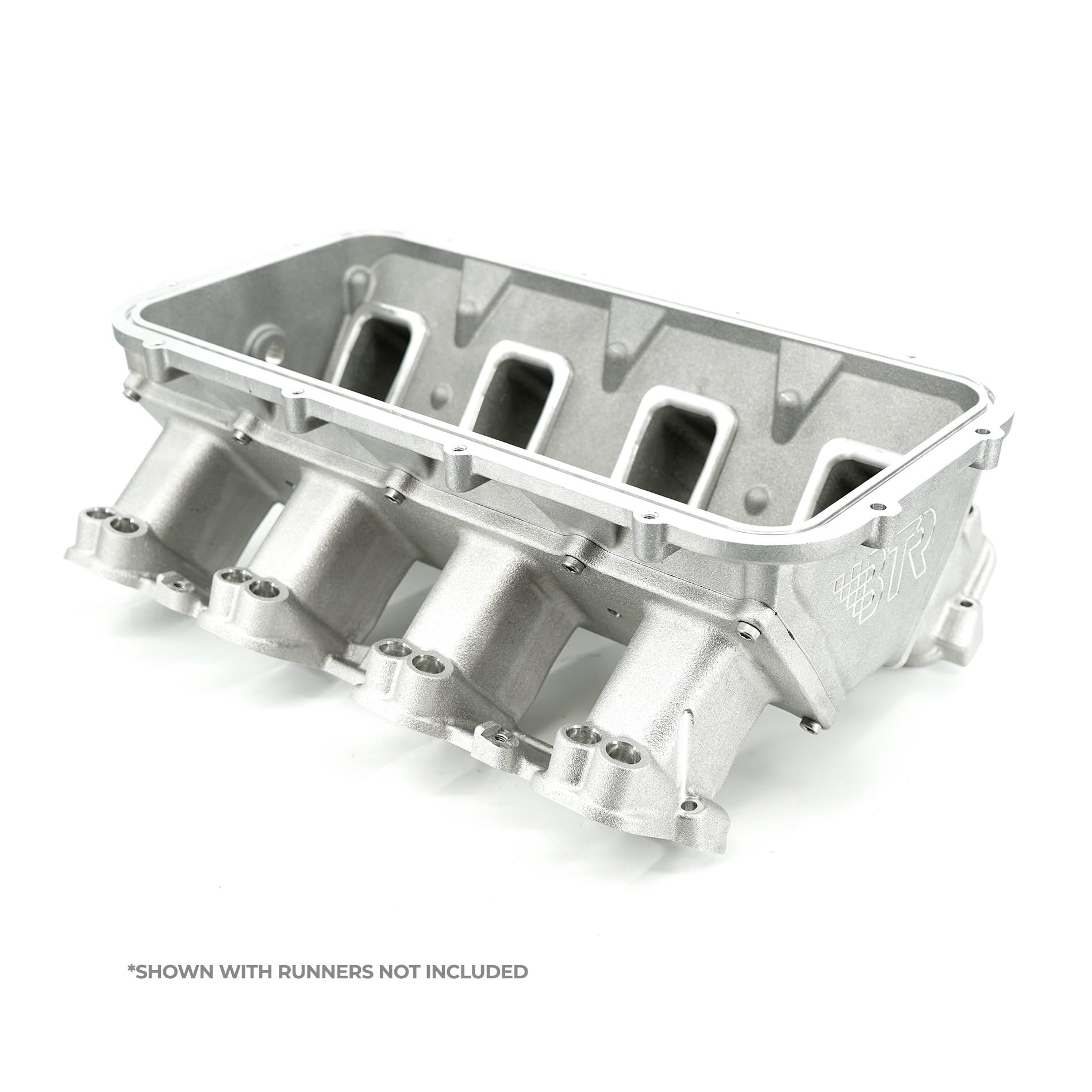

- Accepts all non-HEMI Trinity runners
- Accepts wide range of injectors! See injector chart in Downloads section above.
Features
| EMS Code | EMS: Code 3 |
|---|---|
| BTR SKU | TRP-TNL |
| Length | 20.000000 |
| Width | 11.000000 |
| Height | 7.000000 |
| Weight | 9.900000 |
| Brand | Brian Tooley Racing |
| Part Type | Intake Manifold Base |
| Finish | NATURAL |
| Manifold Material | CAST ALUMINUM |
| Fuel Rails Included | NO |
