BTR TRINITY GEN V TRUCK INTAKE MANIFOLD - NATURAL - WITH INJECTORS - TRA-LTTK-INJ

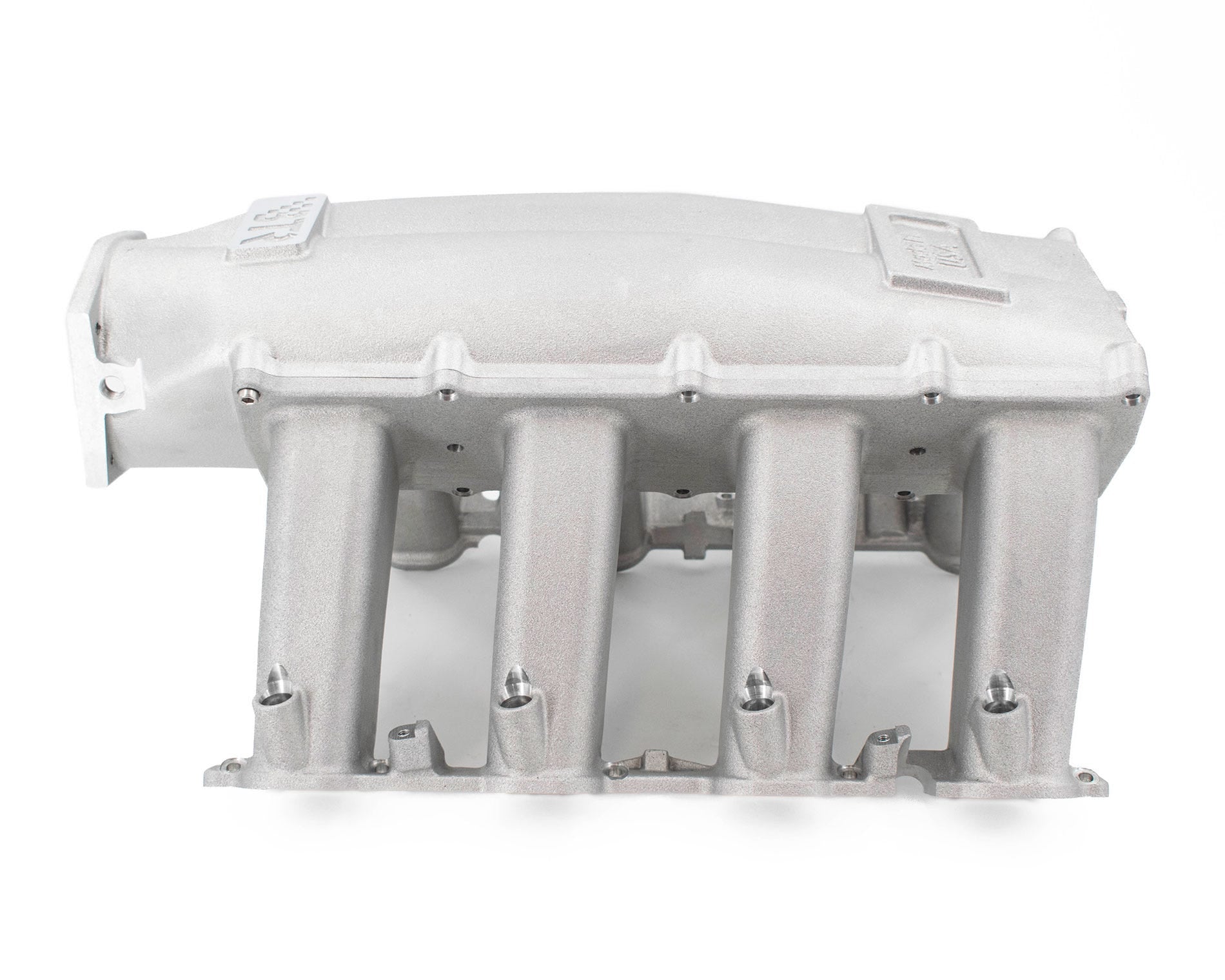

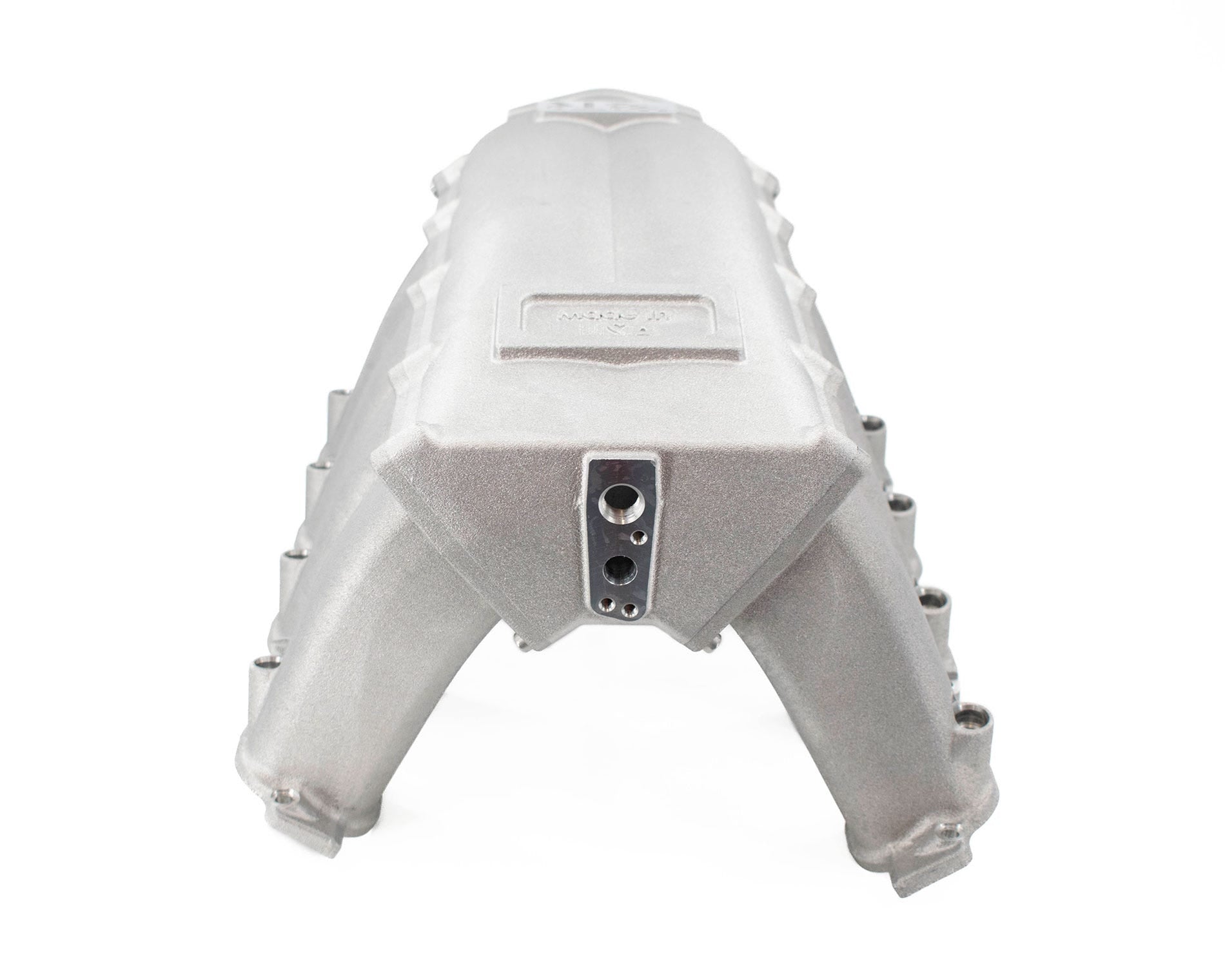

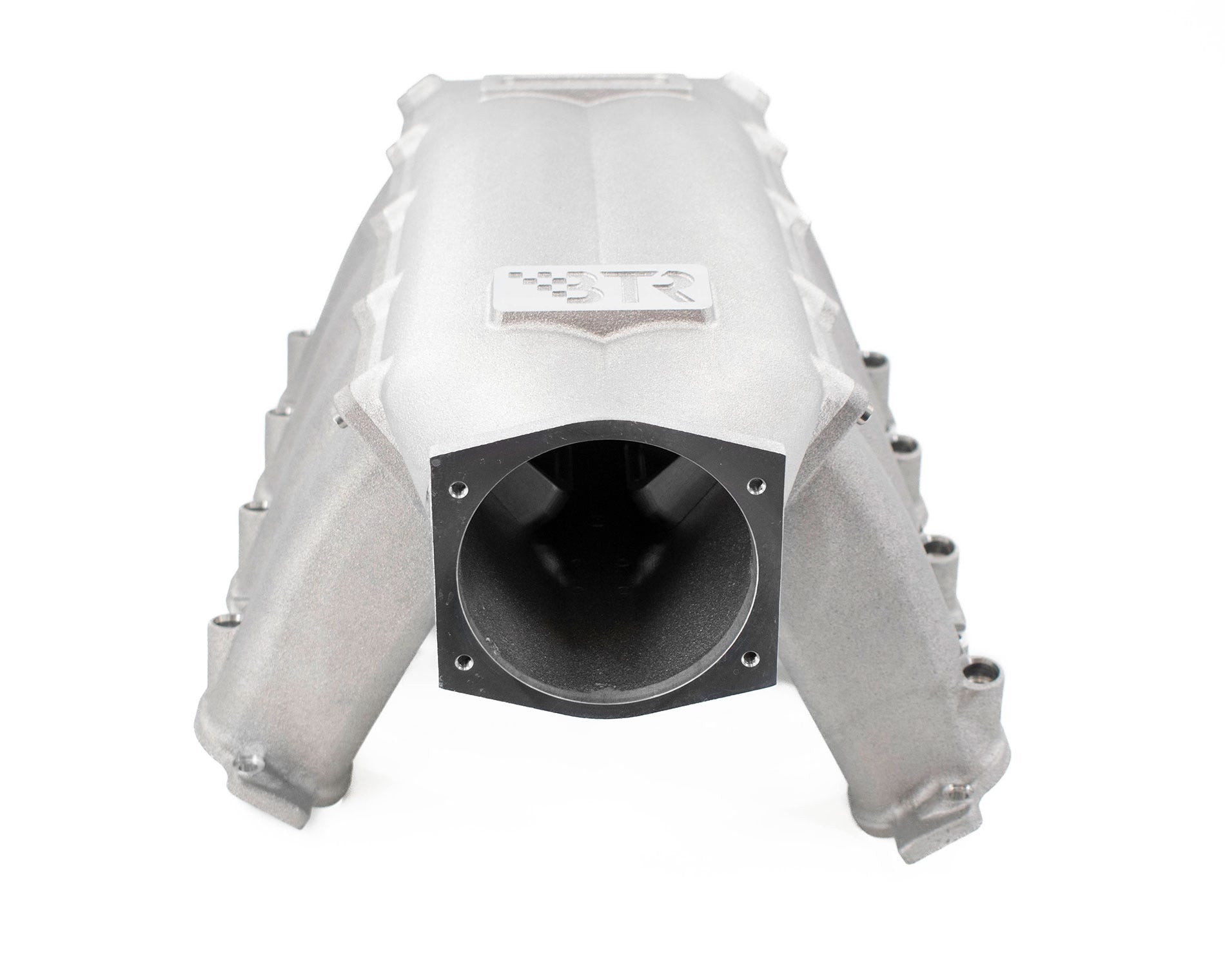

Introducing the newest rendition of our popular Trinity Intake Manifold lineup! The ALL NEW Gen V Trinity Truck Intake. This 3 piece, cast aluminum, 8” long runner design was developed for our Gen V LTx equipped truck clients, looking to add every bit of horsepower to their combination. The runner length will allow for more mid-range torque compared to the short runner Trinity offerings. It's modular design makes servicing and porting easier than any other cast units on the market, and offers the ultimate flexibility for end user needs.

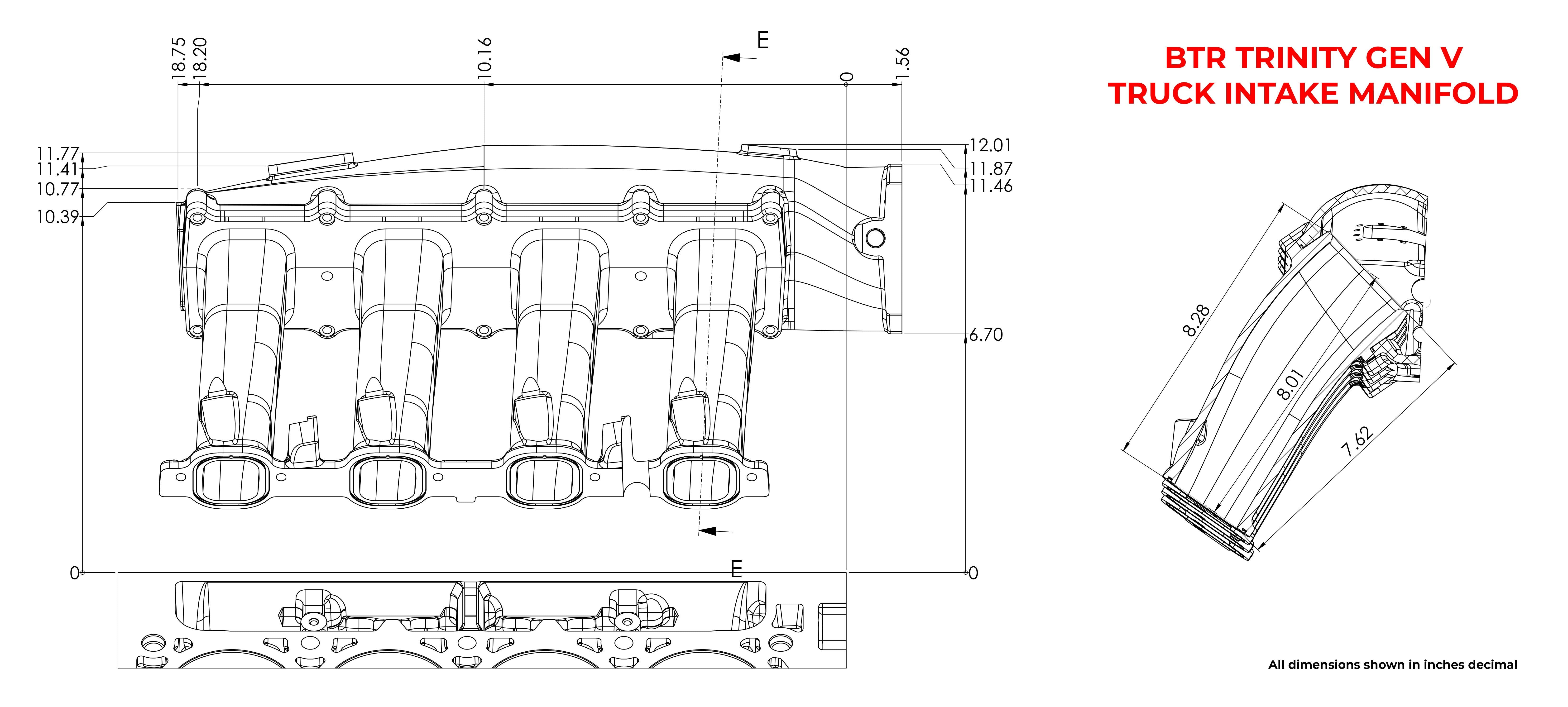

- Average runner length - 8" - Long style runner for streetable RPM applications

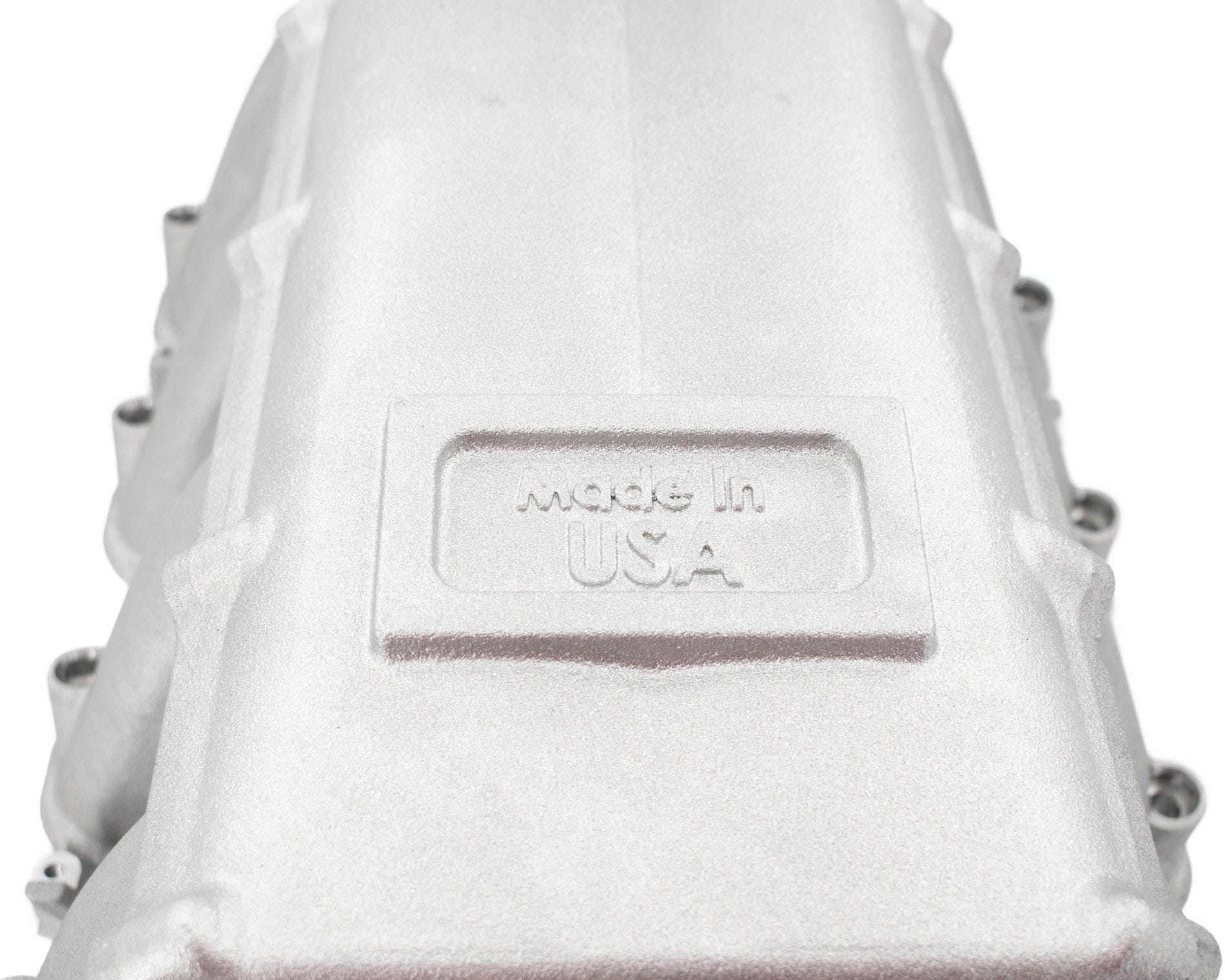

- Designed, cast, and machined in the USA

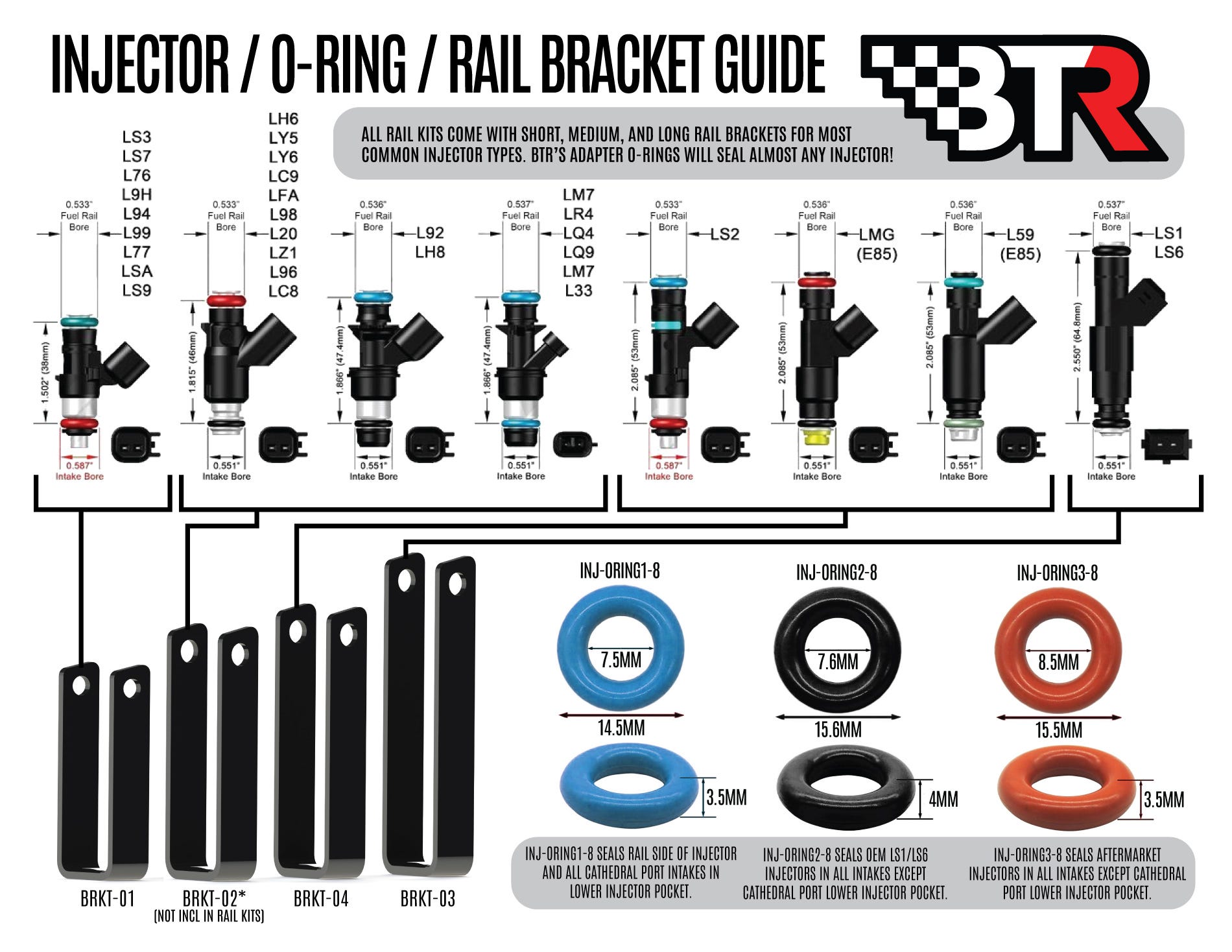

- Port injection provisions for MPFI conversion or dual fuel systems - Uses FRK-02 or FRK-02-12 rail kit
We've added port injection provisions to this intake for you to add port injectors, or convert your LTx to 100% port injection! It should be noted, these versions do not fit LT4 applications. Both black and natural (stainless steel shot-blasted) are available to order now. For questions or concerns, please don't hesitate to speak with our talented team of Sales Engineers BEFORE hitting the buy now option! They can help guide you to a perfect top end combination for your needs!
NOTE: To use this manifold on a L83 engine, a L86/LT1 or 103mm aftermarket throttle body is required.
NOTE: Natural aluminum finish multi-piece manifolds may show slight coloration differences from plenum to runners.
Features
| EMS Code | EMS: Code 3 |
|---|---|
| BTR SKU | TRA-LTTK-INJ |
| Length | 24.000000 |
| Width | 15.000000 |
| Height | 12.000000 |
| Weight | 32.300000 |
| Brand | Brian Tooley Racing |
| Part Type | Intake Manifold |
| Finish | NATURAL |
| Manifold Material | CAST ALUMINUM |
| Fuel Rails Included | NO |
| Manifold Port Style | LTx - GEN V |
| Engine Type | Gen V LT |
| Manifold Fueling Style | EFI |
| Intake Port Style | GEN V LT |
| Injector Provisions | Yes |
