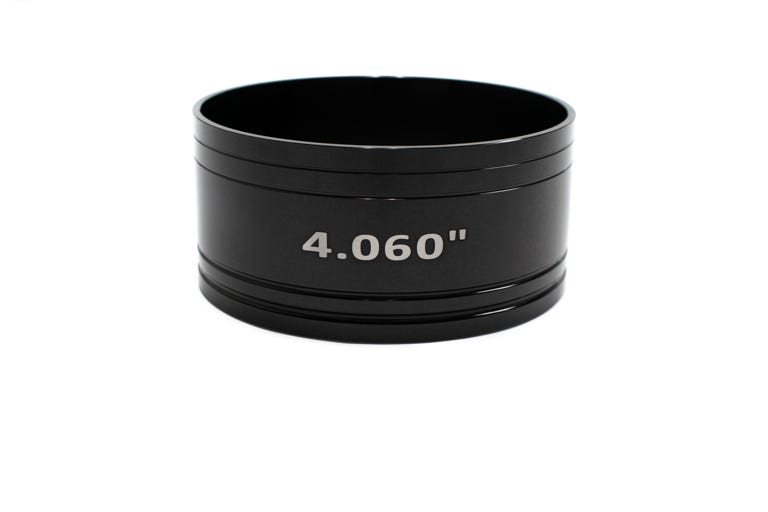

BTR RING COMPRESSOR - 4.060" - BTRRC4060
One-piece aluminum tapered ring compressors have been around for some time, but BTR has made a significant improvement to the design. Rather than relying on the piston skirt to locate the pistons as they're being inserted into the block like one-piece tapered ring compressors currently on the market, the new BTR ring compressors have a small but very important reverse chamfer at the bottom that fits into the chamfer at the top of the block which serves two functions.
First, it locates the ring compressor exactly over the center of the hole. And, secondly, it reduces the chance of the oil ring getting caught between the ring compressor and the top of the block.
The laser etching on a black background is easy to read and looks good even after use.
In our beta testing against competitors tapered ring compressors, the BTR was easier to use and never caught an oil ring between the compressor and the block.
Features:
| EMS Code | EMS: Code 4 - This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. |
|---|---|
| BTR SKU | BTRRC4060 |
| Length | 5.000000 |
| Width | 5.000000 |
| Height | 5.000000 |
| Weight | 1.000000 |
| Brand | Brian Tooley Racing |
| Part Type | Piston Ring Compressor |
| Piston Bore Size | 4.060" |
