BTR PLATINUM PLUS LS DUAL SPRING KIT - .685" LIFT - SK701 - DART OR RHS VALVE GUIDES - .060 LOCATOR - SK701/2060/BB
When you decide to take a walk on the wild side and exceed the .660” limit of our venerable Platinum Spring Kit, the next step is our .685” Spring Kit. A higher spring rate and titanium retainers will ensure valvetrain stability with radical camshafts. This kit does not fit LS9 engines.

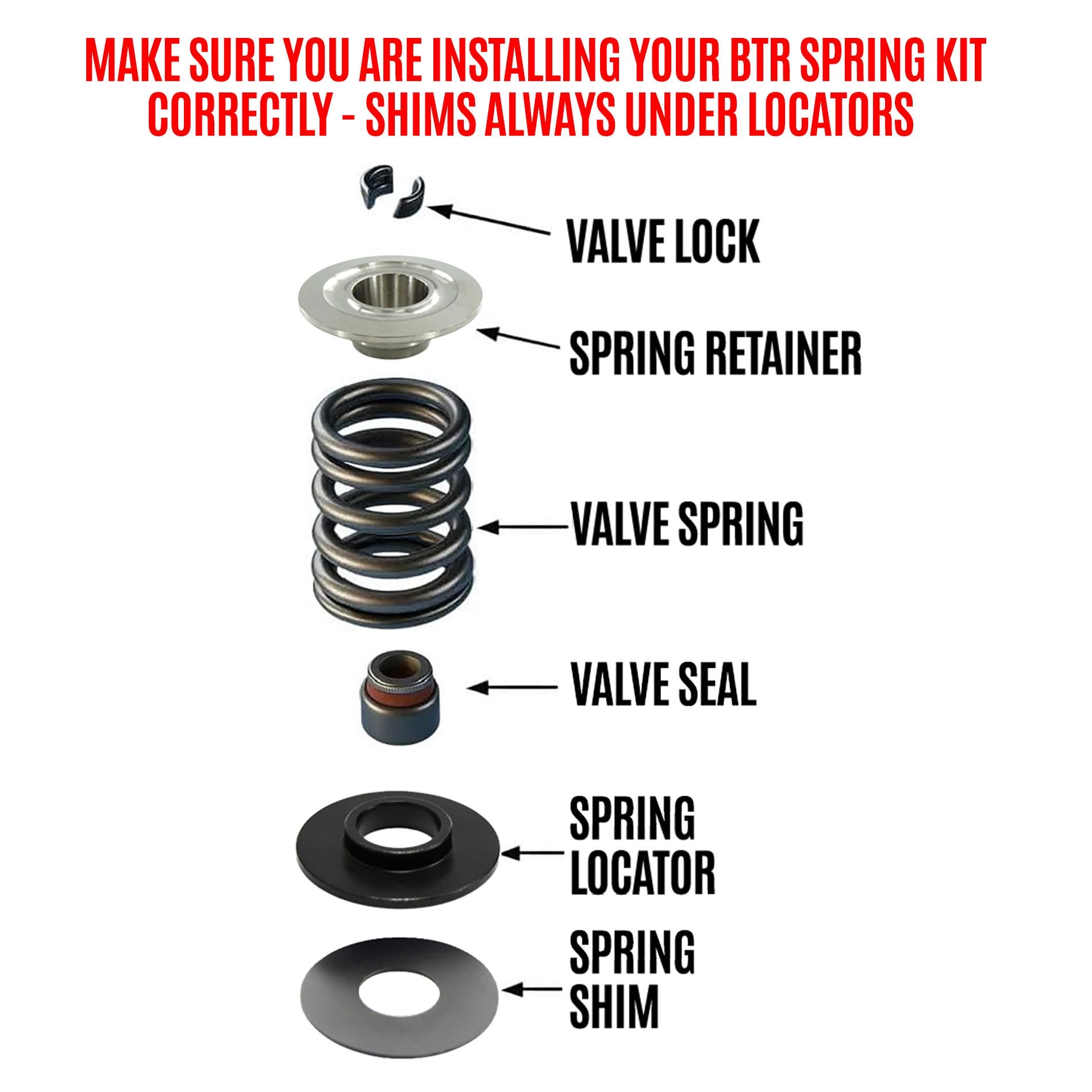

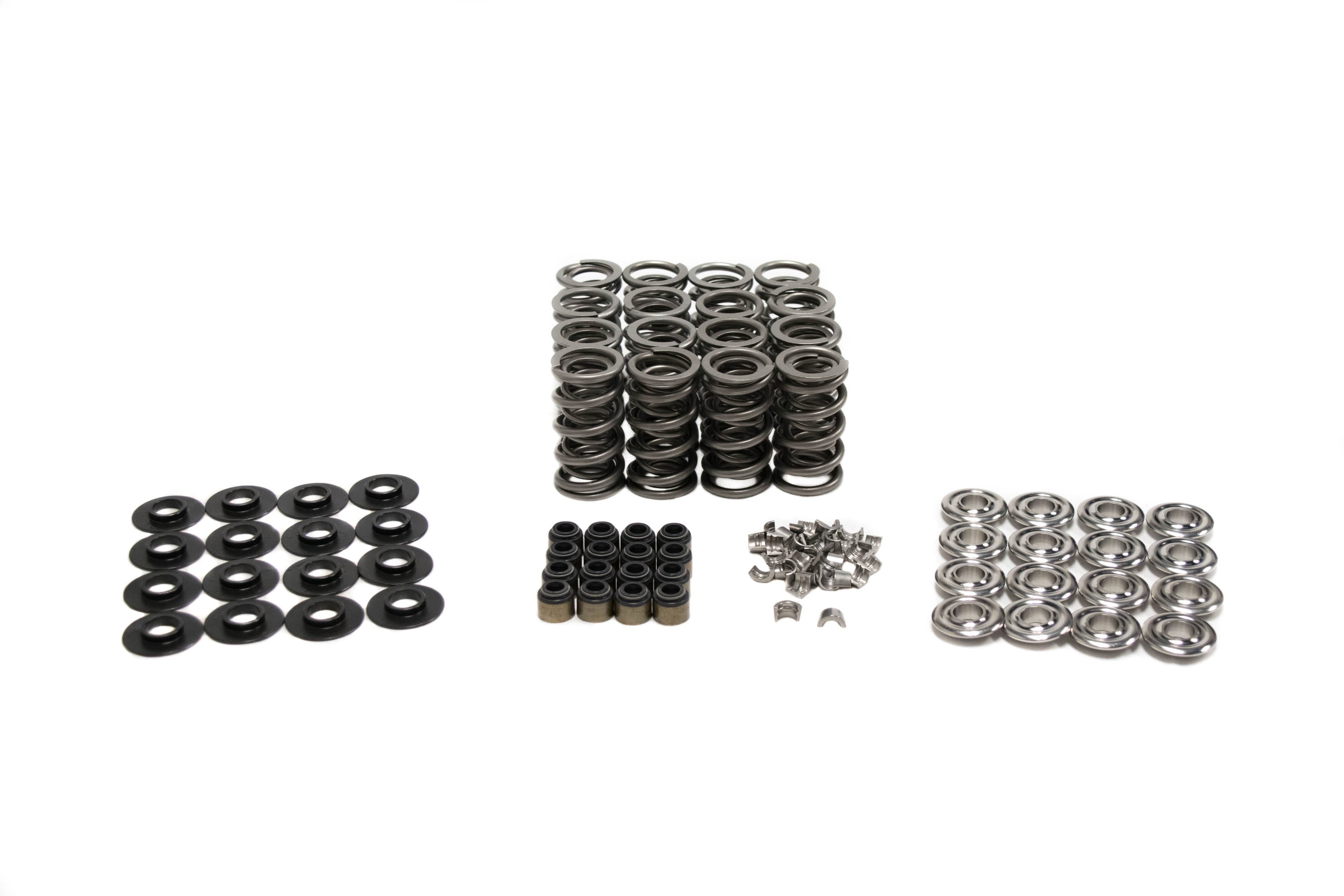

The kit includes the following:
• SP010-16
• SR001-16
• SL520060-16
• VS LS KIT
• VL7°8MM-32
Spring specs are as follows:
•170 lbs @ 1.800"
•380 lbs @ 1.180"
•450 lbs @ 1.115
•Coil bind @ 1.000"
Features:
| EMS Code | EMS: Code 4 - This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. |
|---|---|
| BTR SKU | SK701/2060/BB |
| Length | 12.000000 |
| Width | 3.000000 |
| Height | 4.000000 |
| Weight | 8.000000 |
| Brand | Brian Tooley Racing |
| Part Type | Valve Spring Kit |
| Engine Type | Gen III/Gen IV LS |
| Spring Type | DUAL |
| Max Lift | .660" |
| Retainers Included | YES |
| Valve Seals Included | YES |
| Locators Included | YES |
| Locks Included | YES |
