BTR PLATINUM GEN V LT1 DUAL SPRING KIT - .660" LIFT - TI RETAINER - STOCK GUIDES - SK007/0545/BB
The BTR Platinum Spring Kit would be inducted into the LS Aftermarket Hall of Fame if such a thing existed. Whether you’re putting together a daily driver with a mild cam, a 600 hp N/A stroker, or a turbocharged 1000 hp brawler, our Platinum Spring Kit will make sure your valves are right where your cam wants them to be at all times. With that said, when the Gen V LT engines came out, we knew our Platinum Springs would be right at home on the direct injection platform with the correct supporting parts. They are designed to be used with stock rocker arms. This is a drop-in kit for Gen V LT1, L83, and L86 engines with stock powdered metal guides.
WILL NOT FIT LT4. See SK008 for LT4 applications.

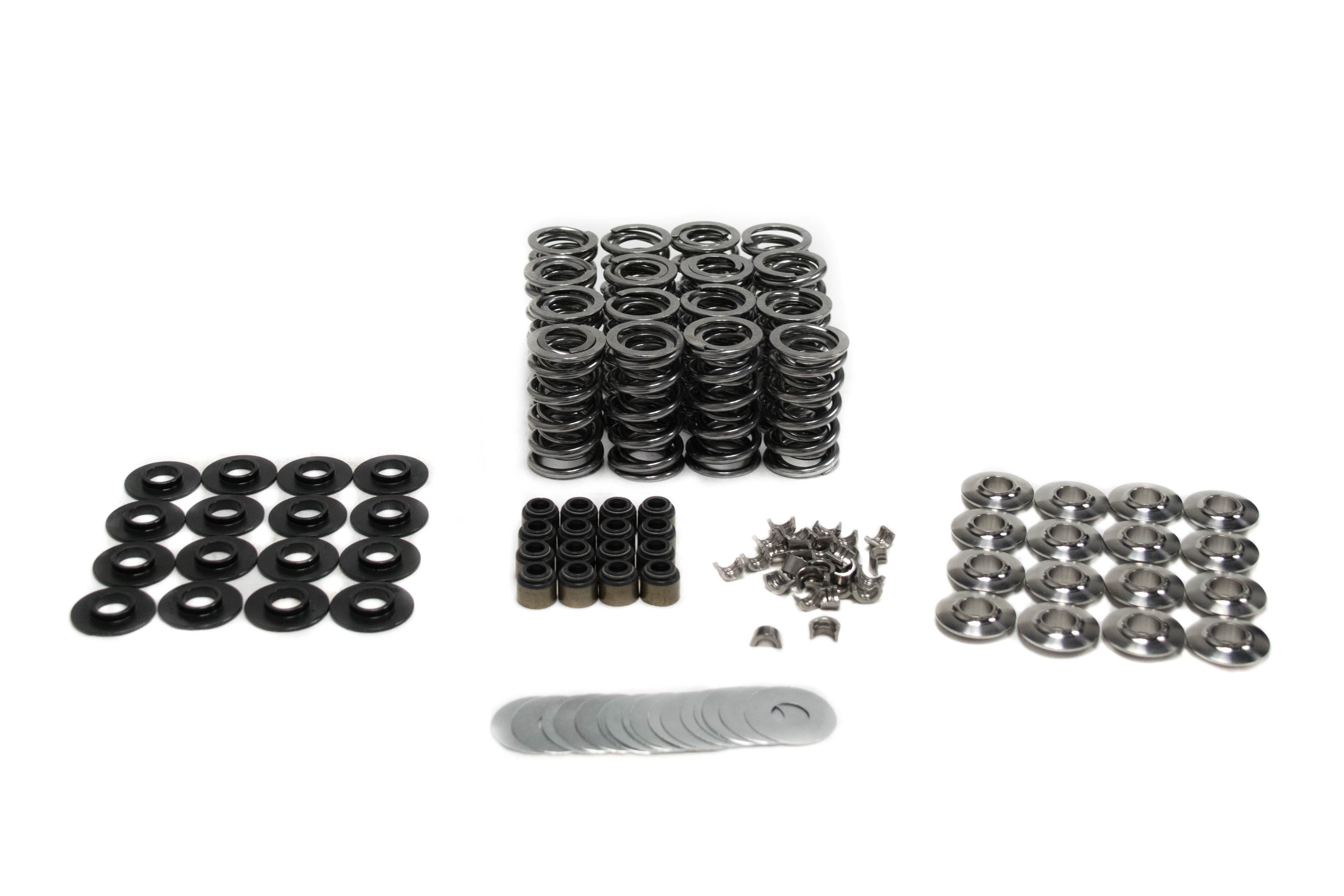

The kit includes the following:
• SP001-1 spring (qty 16)
• SR008-1 retainer (qty 16)
• SL505060-1 (stock valve guide) locator (qty 16)
• VS LS seal (qty 16)
• VL7°8MM-1 lock (qty 32)
• SS015-1 shim (qty 16)

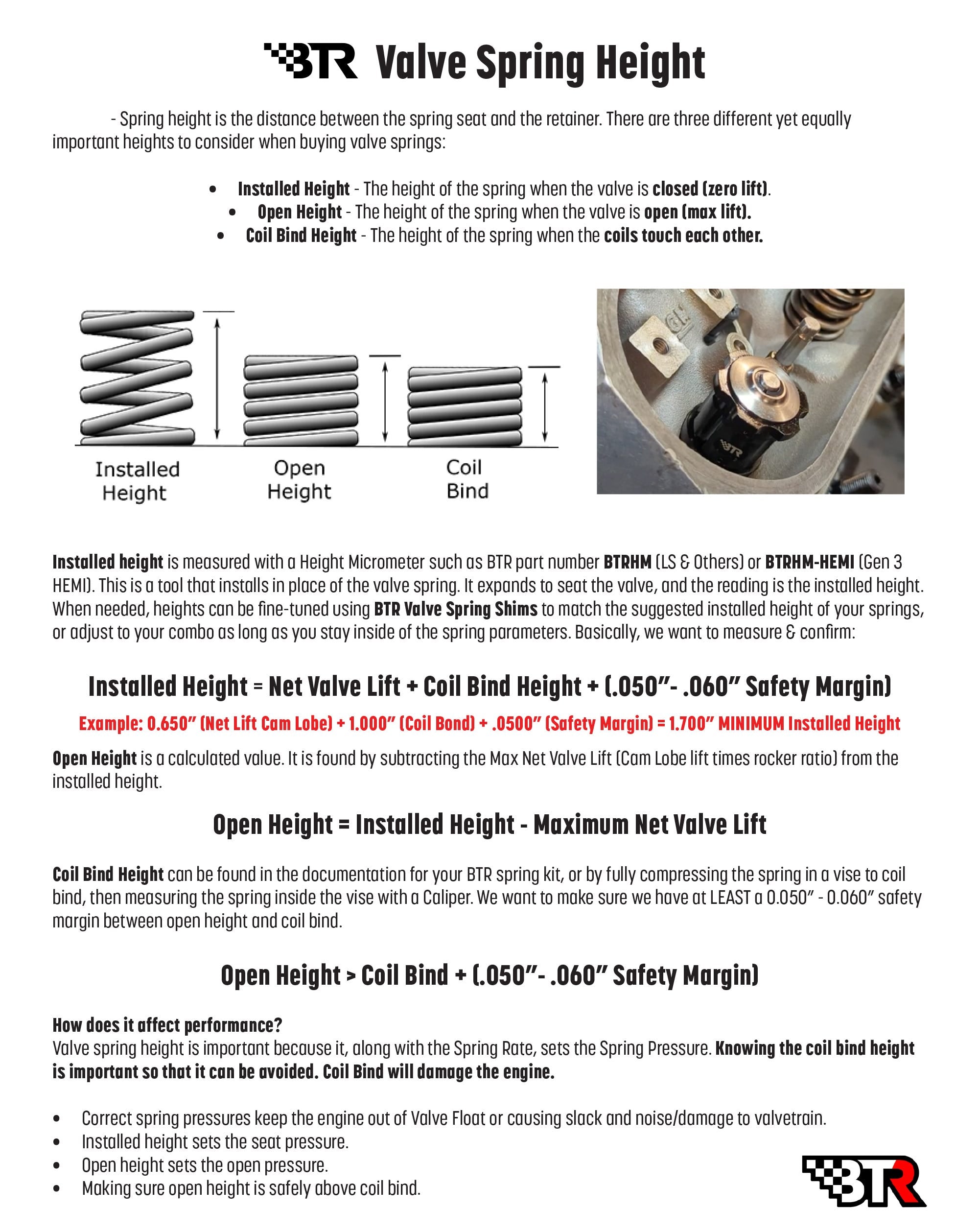

Spring specs are as follows:
•155 lbs @ 1.780"
•380 lbs @ 1.180"
•400 lbs @ 1.130
•Coil bind @ 1.070"
Features:
| EMS Code | EMS: Code 3 |
|---|---|
| BTR SKU | SK007/0545/BB |
| Length | 12.000000 |
| Width | 3.000000 |
| Height | 4.000000 |
| Weight | 4.800000 |
| Brand | Brian Tooley Racing |
| Part Type | Valve Spring Kit |
| Engine Type | Gen V LT |
| Spring Type | DUAL |
| Max Lift | .660" |
| Retainers Included | YES |
| Valve Seals Included | YES |
| Locators Included | YES |
| Locks Included | YES |
