BTR GEN V .660" PLATINUM VALVE SPRING KIT WITH VALVE TIP SAVERS - BTR-SK007/6560/BB/TS
When the Gen V LT engines came out, we knew our Platinum Springs would be right at home on the direct injection platform with the correct supporting parts. This kit is designed to be used with stock rocker arms. This is a drop-in kit for most bronze guide aftermarket Gen V LT cylinder heads. Excludes LT4. Includes tip savers to revitalize your worn valve tips!

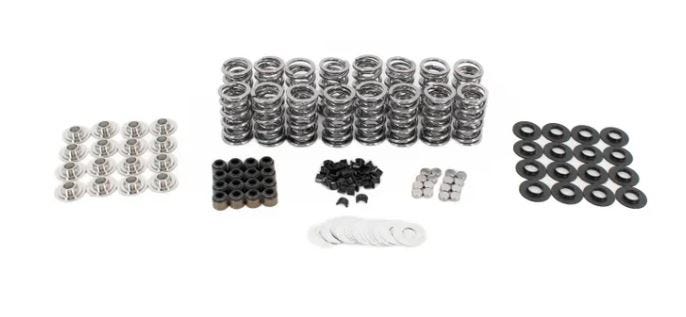

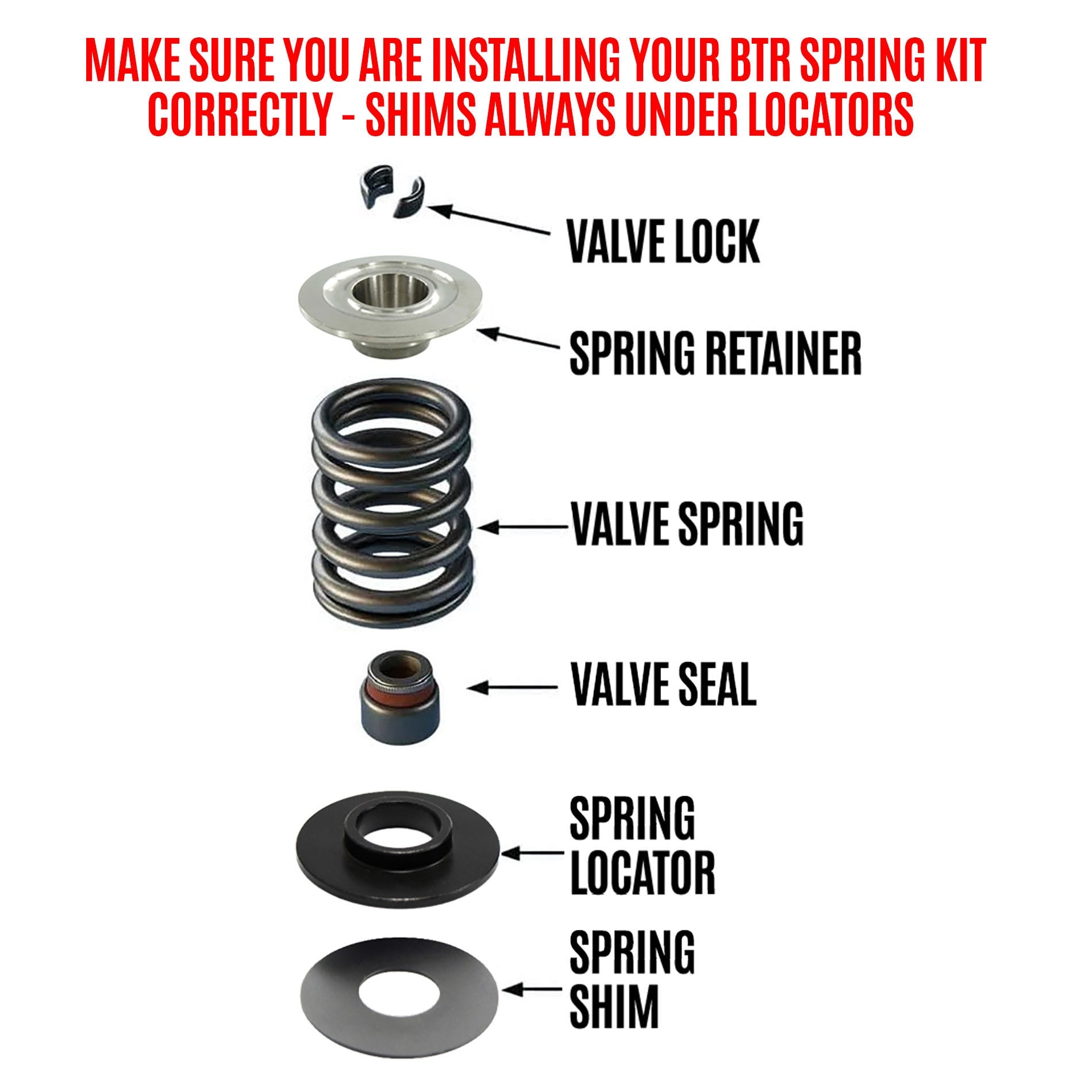

Includes the following:
• SP001-1 spring (qty 16)
• SR001-1 titanium retainer (qty 16)
• SL565060-16 (bronze valve guide) locator (qty 16)
• VS LS seal (qty 16)
• VL78MMBL-.075-16 lock (qty 16)
• SS015-1 shim (qty 16)
• 19302366 lash caps / tip saver kit (2 sets of 8)
Spring specs:
•155 lbs @ 1.780"
•380 lbs @ 1.180"
•400 lbs @ 1.130
•Coil bind @ 1.070"
Features:
| EMS Code | EMS: Code 4 - This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. |
|---|---|
| BTR SKU | BTR-SK007/6560/BB/TS |
| Length | 12.000000 |
| Width | 3.000000 |
| Height | 3.000000 |
| Weight | 10.000000 |
| Brand | Brian Tooley Racing |
| Part Type | Valve Spring Kit |
| Engine Type | Gen V LT |
| Spring Type | DUAL |
| Max Lift | .660" |
| Retainers Included | YES |
| Valve Seals Included | YES |
| Locators Included | YES |
| Locks Included | YES |
