BTR MAX PRESSURE SBC DUAL SPRING KIT - .650" LIFT - FOR ROLLER ROCKERS - TITANIUM RETAINERS - SK004/T/0560
BTR’s Max Pressure Spring Kit applies what we learned when designing the Platinum Spring Kit (SK001) and applies it to applications utilizing roller rockers. Due to the additional weight of roller rockers, a higher spring rate is needed to retain valvetrain stability. Whether you’re putting together a daily driver with a mild cam, a 600 hp N/A stroker, or a turbocharged 1000 hp brawler, our Platinum Spring Kit will make sure your valves are right where your cam wants them to be at all times.

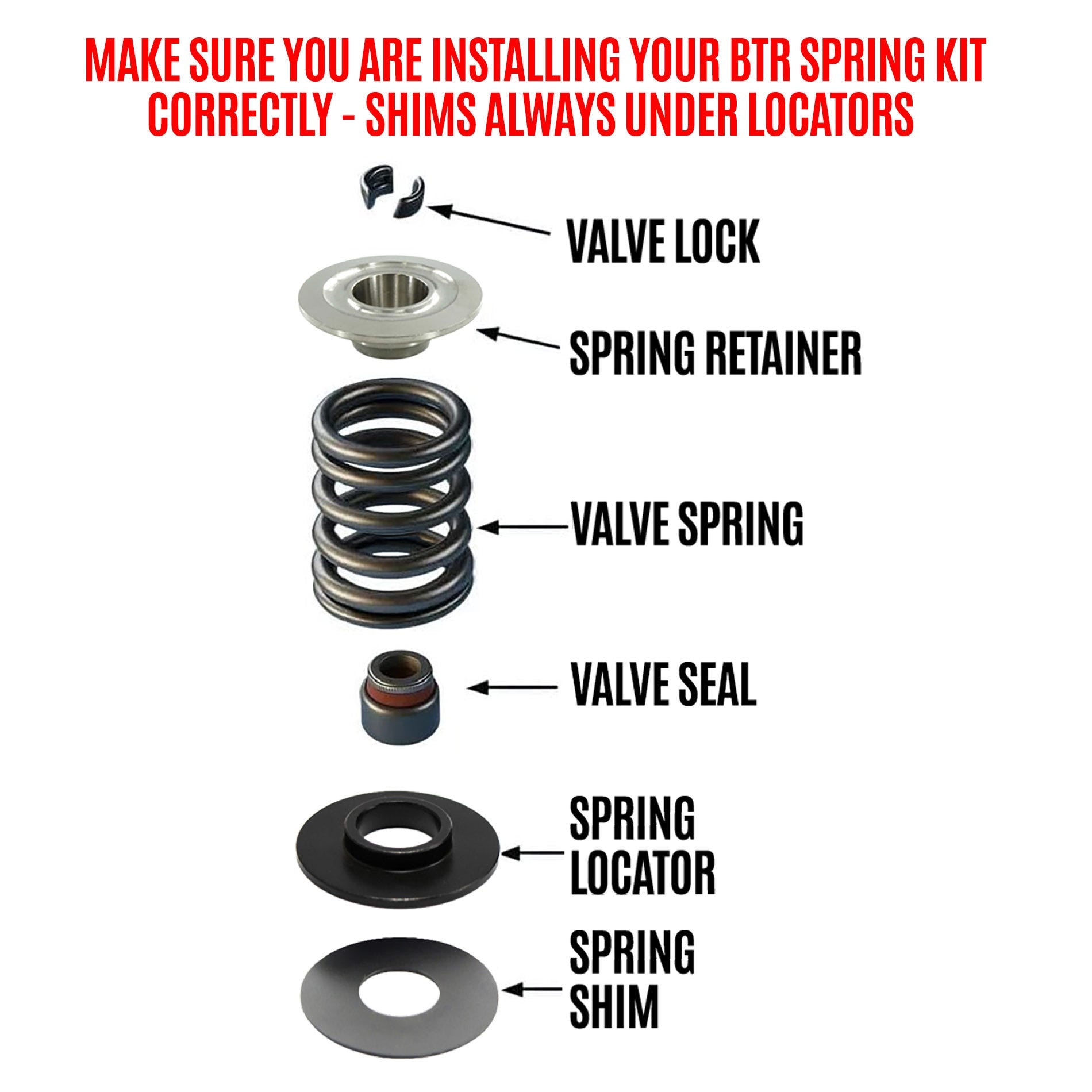

Kit includes:
• SP010-1 - .650” lift BTR Max Pressure Dual Valve Springs (16)
• SR004-16 - BTR Titanium Retainer Set For Max Pressure Springs
• SL505060-16 - BTR Spring Locator Set; .505" ID, .060" Thick
• VS500341-16 - BTR Valve Seal Kit
• CC648-16 - Valve Lock Set
Spring specs:
170 lbs @ 1.800”
380 lbs @ 1.180"
450 lbs @ 1.115”
Coil bind @ 1.000”
MEASURE YOUR VALVE GUIDES BEFORE PURCHASE!
Features:
| BTR SKU | SK004/T/0560 |
|---|---|
| Length | 12.000000 |
| Width | 3.000000 |
| Height | 4.000000 |
| Weight | 8.000000 |
| Brand | Brian Tooley Racing |
| Part Type | Valve Spring Kit |
| Engine Type | Small Block Chevy |
| Spring Type | DUAL |
| Max Lift | .650" |
| Retainers Included | YES |
| Valve Seals Included | YES |
| Locators Included | YES |
| Locks Included | YES |
