BTR LS9 PLATINUM PLUS .685" LIFT VALVE SPRING KIT - SK702/0560/LS9
When you decide to take a walk on the wild side and exceed the .660” limit of our popular Platinum Spring Kit, the next step is our .685” Spring Kit. A higher spring rate and titanium retainers will ensure valvetrain stability with radical camshafts. FOR LS9 ENGINES ONLY!

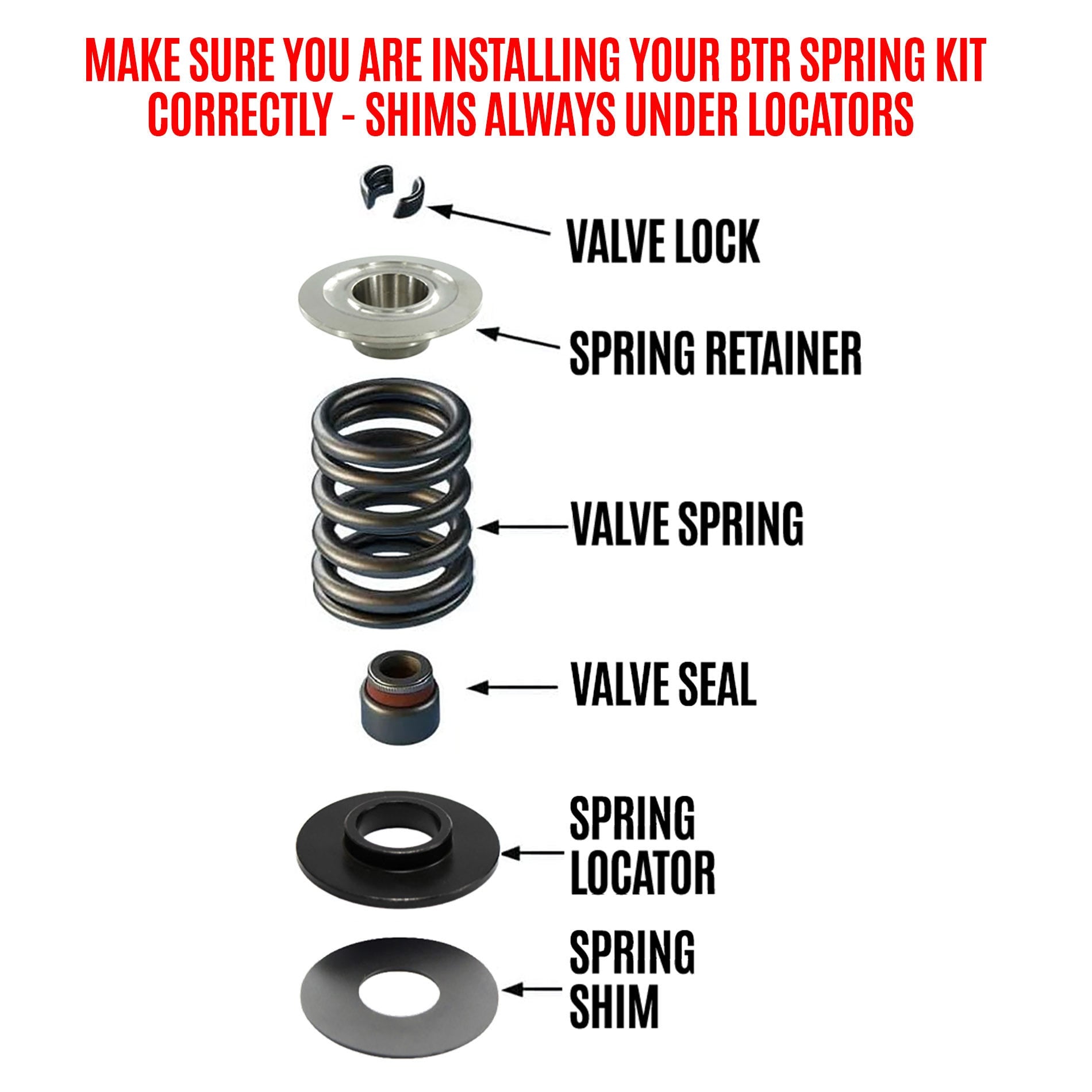

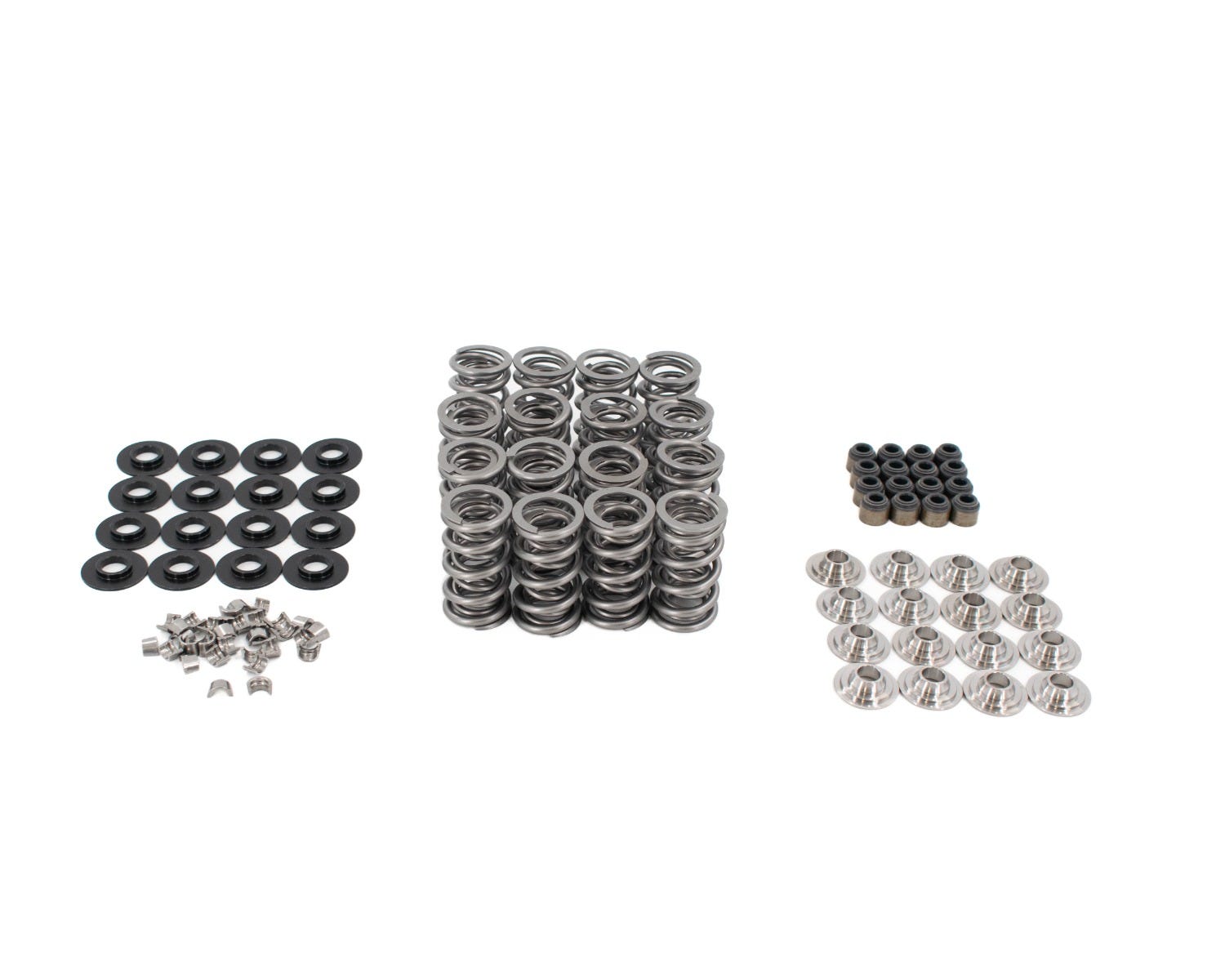

The kit includes the following:
• SP010-16
• SR006-16
• SL505060-16 (stock or powder metal guide)
• VS LS KIT
• VL7°8MM-32

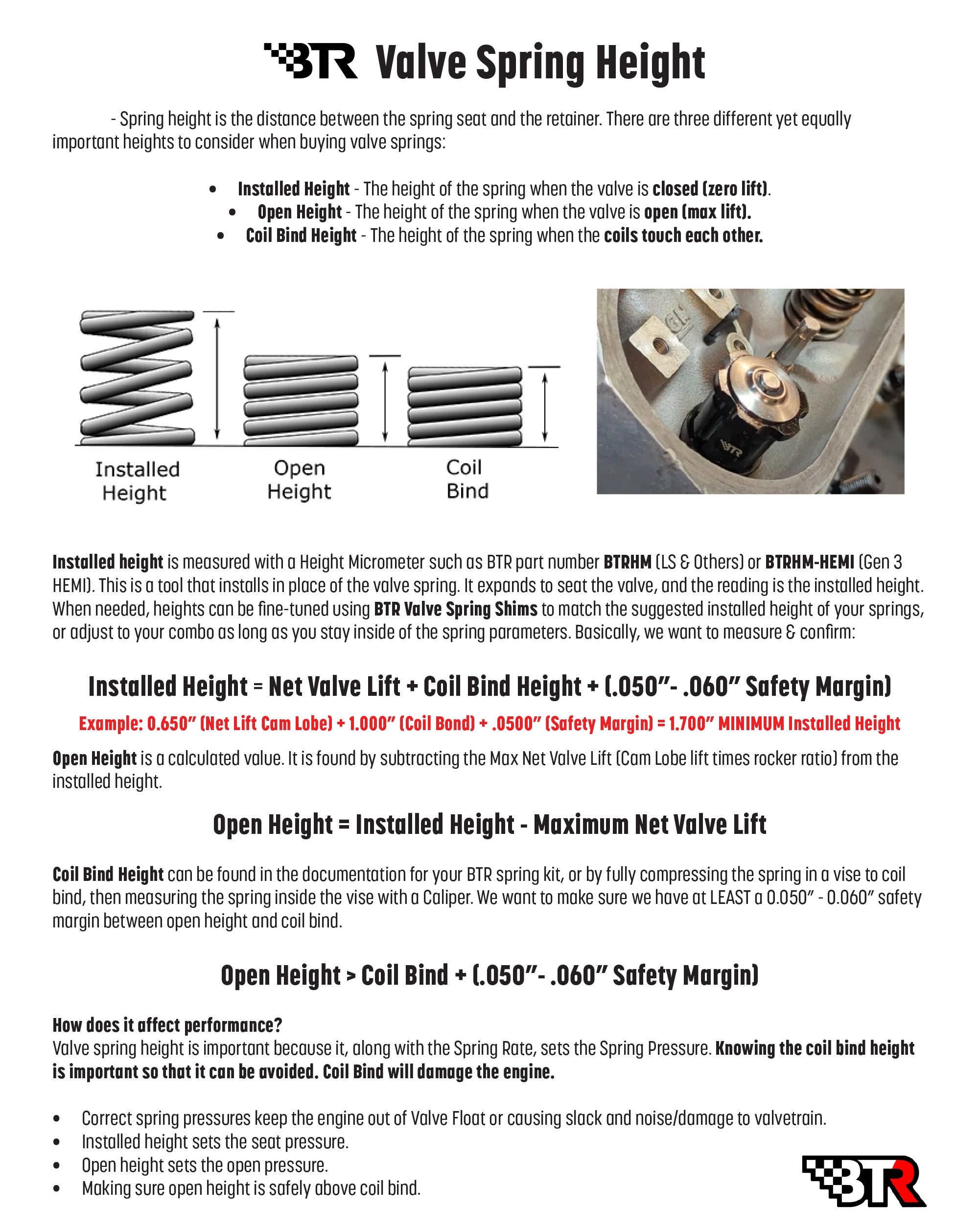

Spring specs are as follows:
•170 lbs @ 1.800"
•380 lbs @ 1.180"
•450 lbs @ 1.115
•Coil bind @ 1.000"
Features:
| EMS Code | EMS: Code 3 |
|---|---|
| BTR SKU | SK702/0560/LS9 |
| Length | 12.000000 |
| Width | 3.000000 |
| Height | 3.000000 |
| Weight | 10.000000 |
| Brand | Brian Tooley Racing |
| Part Type | Valve Spring Kit |
| Engine Type | LS9 |
| Spring Type | DUAL |
| Max Lift | .685" |
| Retainers Included | YES |
| Valve Seals Included | YES |
| Locators Included | YES |
| Locks Included | YES |
