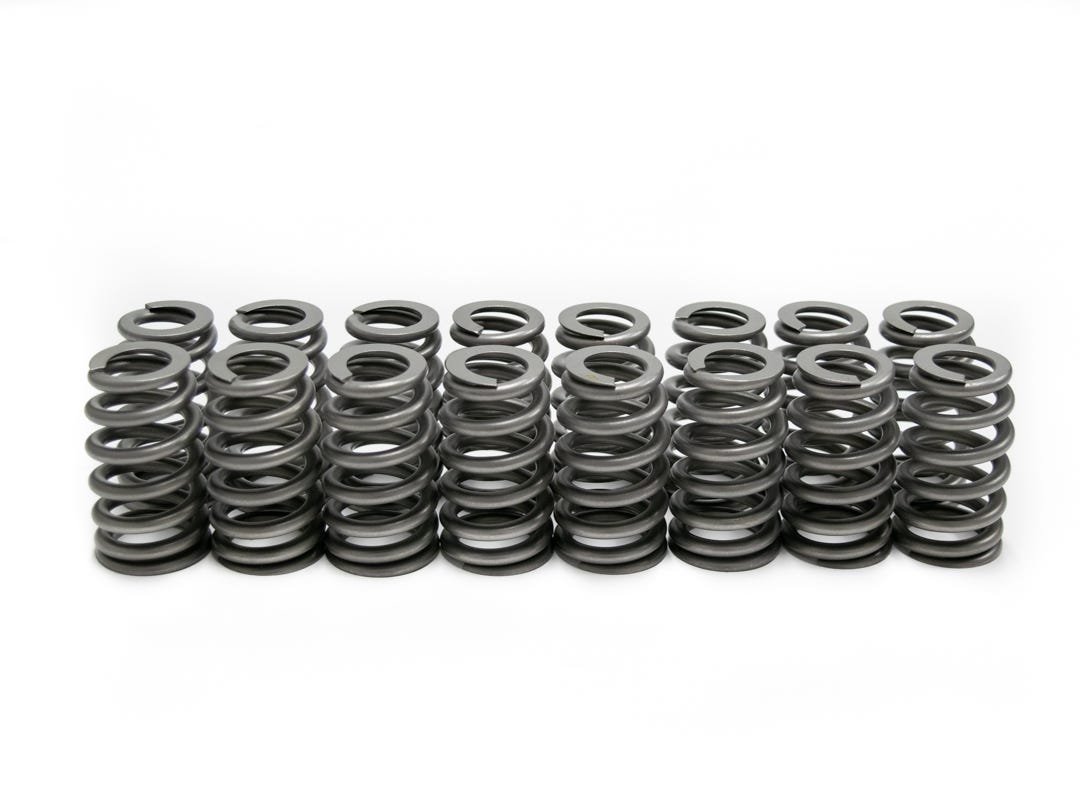

BTR .560" LS6 BEEHIVE VALVE SPRING SET - SP011-16
BTR's .560" lift LS6-style valve springs gives you all of the performance of the venerable OEM LS6 valve spring (GM part # 12499224 or 12586484) at a fraction of the cost. These springs pair perfectly with our truck series camshafts and are also a great option for replacing worn out or broken springs in stock applications.
•100 lbs @ 1.800”
•285 lbs @ 1.240”
•Coil bind @ 1.150”
NOTE - BTR does not recommend single wire conical or beehive springs with roller rockers due to the extra mass causing loss of valve train stability, or the use of a higher ratio rocker as it could possibly cause a coil bind issue. If you have a specific combination of valvetrain parts you are needing to use a roller rocker on, please call in to our sales team for clarification.
Features:
| EMS Code | EMS: Code 4 - This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. |
|---|---|
| BTR SKU | SP011-16 |
| Length | 10.250000 |
| Width | 3.250000 |
| Height | 3.000000 |
| Weight | 3.000000 |
| Brand | Brian Tooley Racing |
| Part Type | Valve Spring |
| Engine Type | Gen III/Gen IV LS |
| Spring Type | SINGLE |
