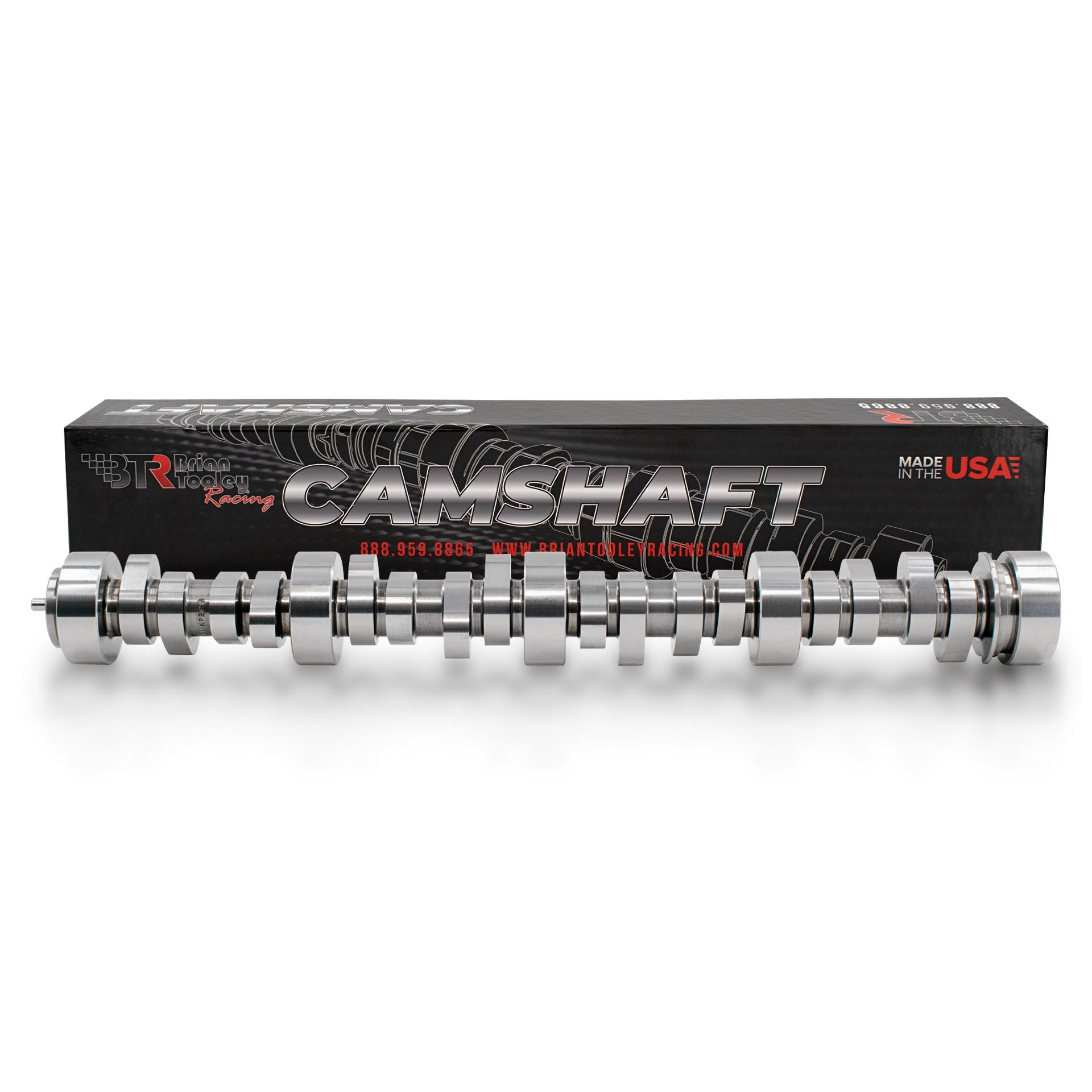

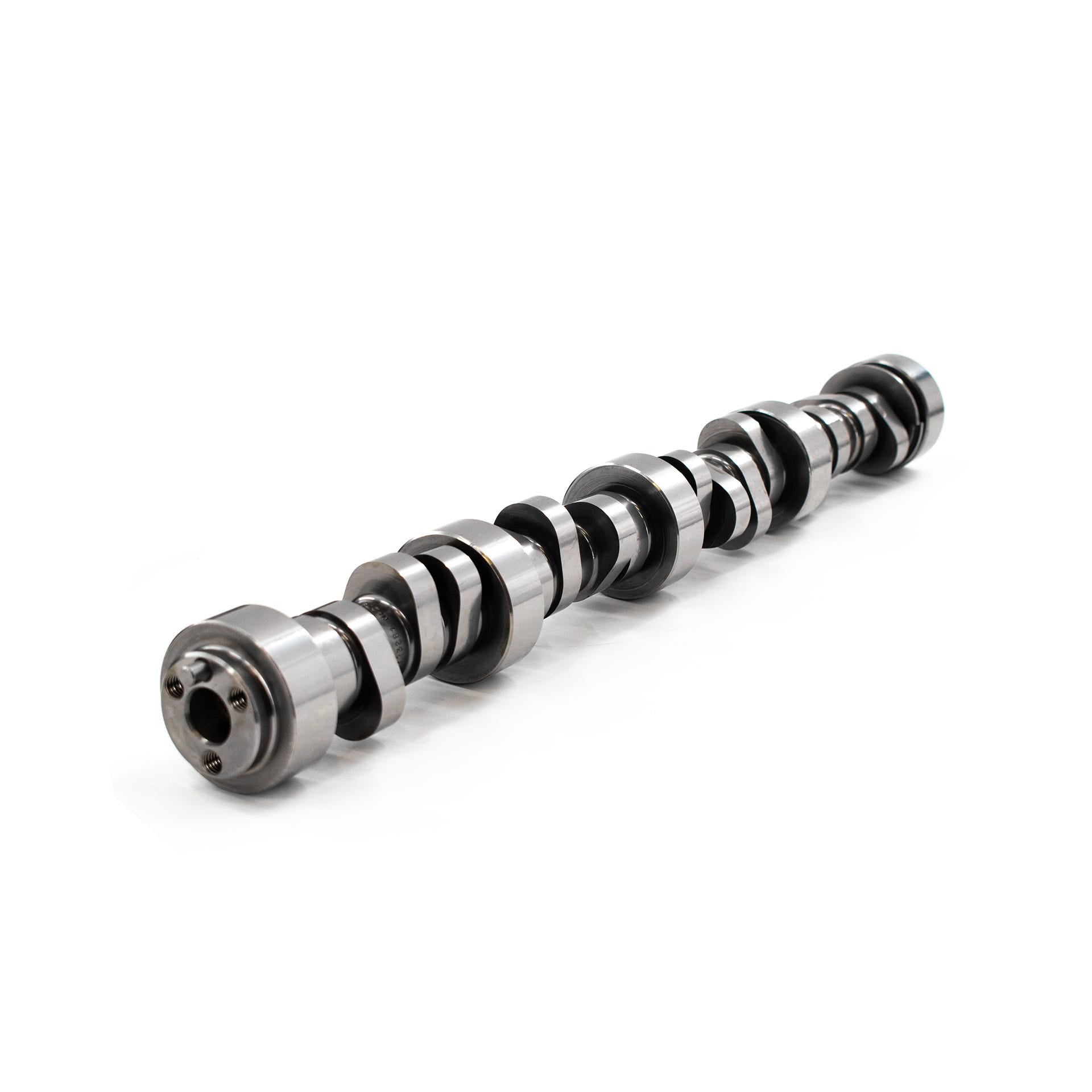

BTR STAGE 4 TWIN TURBO CAMSHAFT V2
230/25X .618"/.618" 116 LSA
INTAKE LOBE LIFT @ TDC: 0.05553
The new BTR Twin Turbo Stage 4 V2 cam was designed for use in serious effort stock stroke applications. Developed in house, we went back to the drawing board in search of more power and torque ,even with the use of less intake duration. These new BTR lobe designs were Spintron tested to help achieve the highest overall power curve while also maintaining strict valvetrain stability and durability standards.
Paired with larger 70+ mm turbos , this camshaft will help you move some serious air. For you folks who may have a street/strip 408" bottom end spinning large enough turbos , this new cam can also be a very good fit, although you may want to look into our 400" Twin Turbo cam lineup.
Features
| EMS Code | EMS: Code 3 |
|---|---|
| BTR SKU | BTR-TWINTURBOSTG4 |
| Length | 24.000000 |
| Width | 3.000000 |
| Height | 3.000000 |
| Weight | 15.000000 |
| Brand | Brian Tooley Racing |
| Part Type | Camshaft |
| Engine Type | Gen III/Gen IV LS |
| Engine Combination | TWIN TURBOCHARGED |
| Camshaft Style | HYDRAULIC ROLLER |
| Cam Bolt Style | THREE BOLT |
