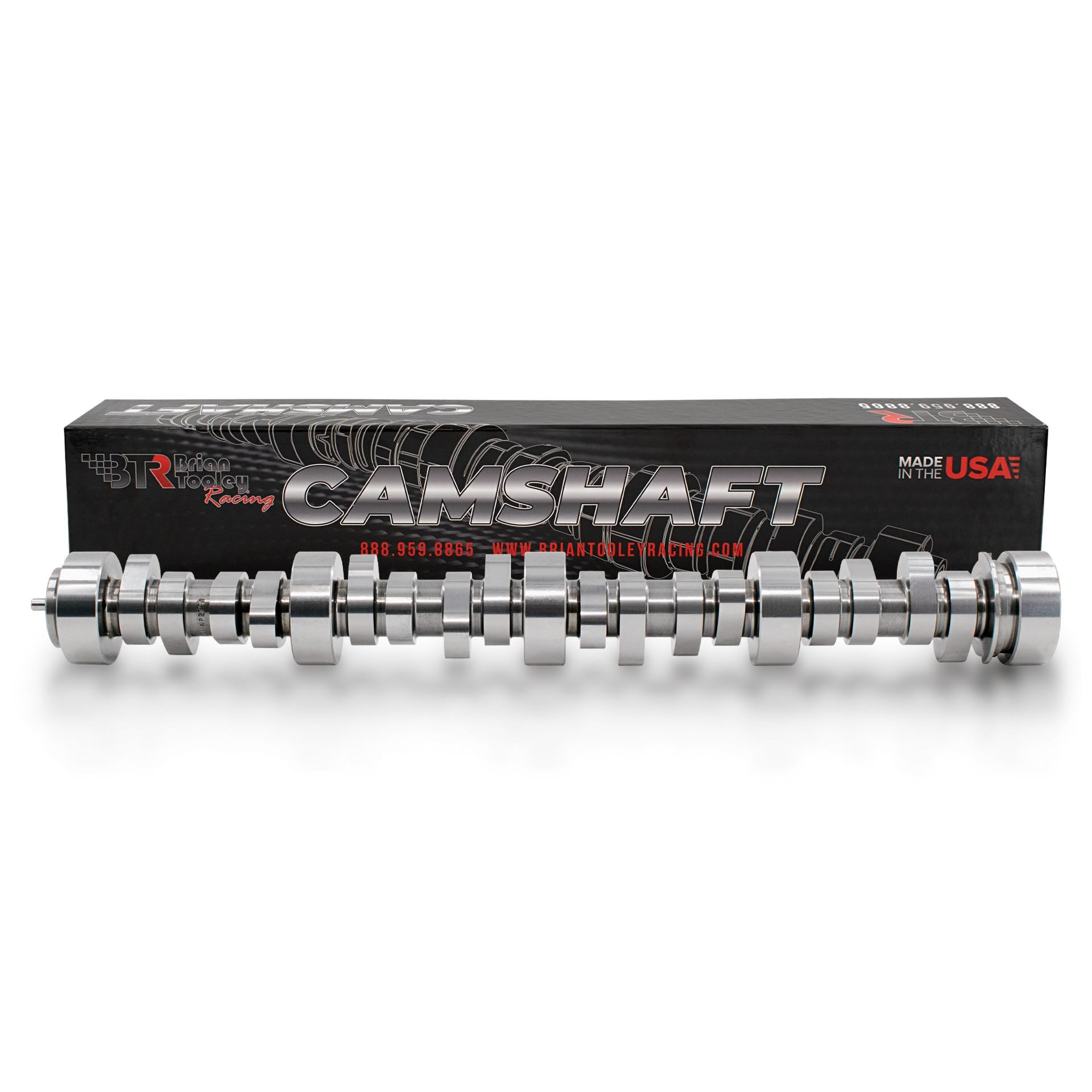

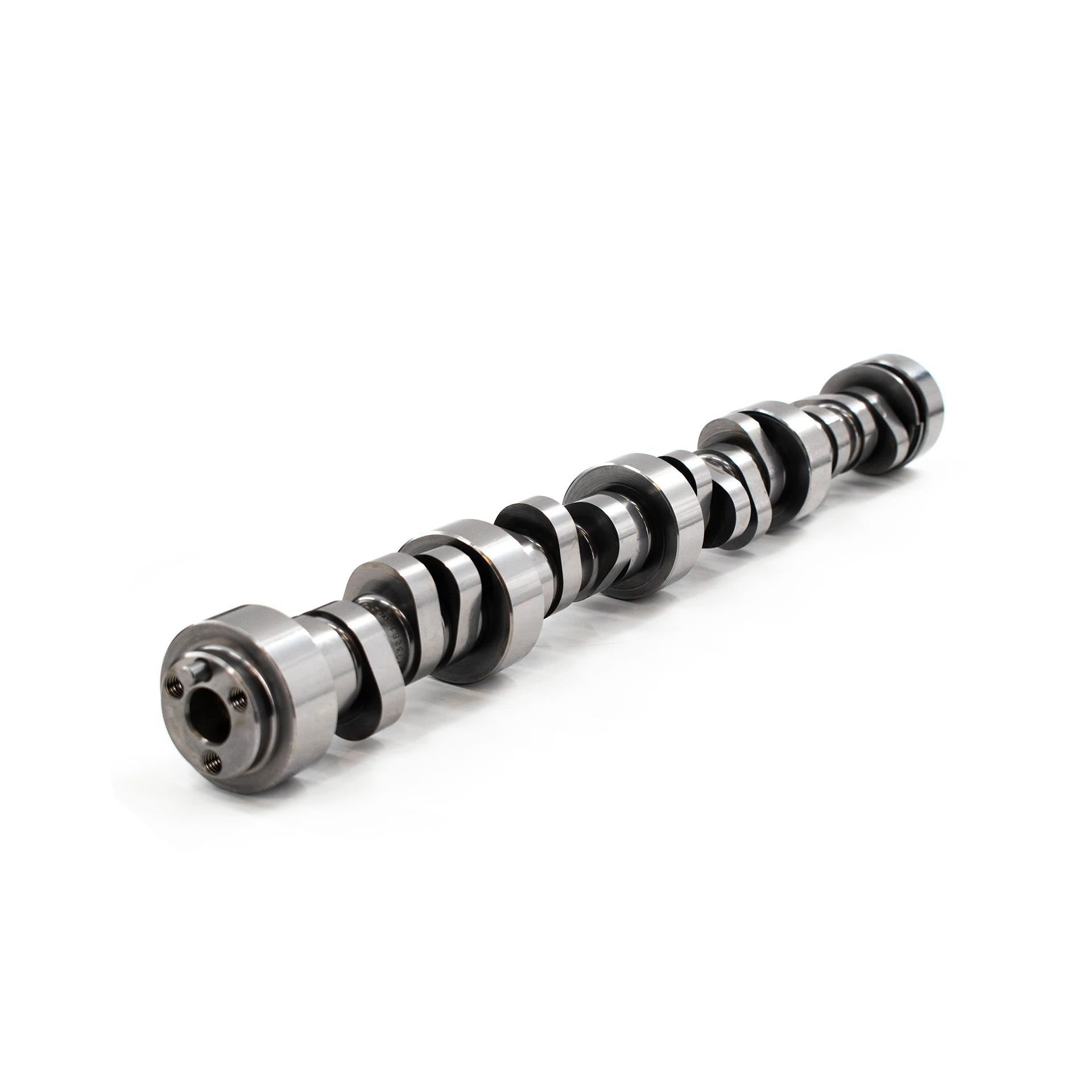

BTR LS STAGE 3 TURBO CAMSHAFT V2 - BTR-TURBOSTG3
224/24X .618"/.618" 114 LSA
INTAKE LOBE LIFT @ TDC: 0.04721
The new BTR Turbo Stage 3 V2 cam was designed to bridge the gap between street and strip applications . The old Stage 3 had proven to be an excellent camshaft choice for cathedral port headed 5.3s and 6.0s utilizing a wide range of different turbos. Developed in house, we went back to the drawing board in search of more power and torque ,even with the use of less intake duration. These new BTR lobe designs were Spintron tested to help achieve the highest overall power curve while also maintaining strict valvetrain stability and durability standards.
Do you have a lightweight setup with a powerglide + 5.3/6.0 that's being pressurized by an S400 (or similar size) turbocharger? If so, this cam will have you lighting the win lamps on race day.
Features
| EMS Code | EMS: Code 3 |
|---|---|
| BTR SKU | BTR-TURBOSTG3 |
| Length | 24.000000 |
| Width | 3.000000 |
| Height | 3.000000 |
| Weight | 15.000000 |
| Brand | Brian Tooley Racing |
| Part Type | Camshaft |
| Engine Type | Gen III/Gen IV LS |
| Engine Combination | TURBOCHARGED |
| Camshaft Style | HYDRAULIC ROLLER |
| Cam Bolt Style | THREE BOLT |
