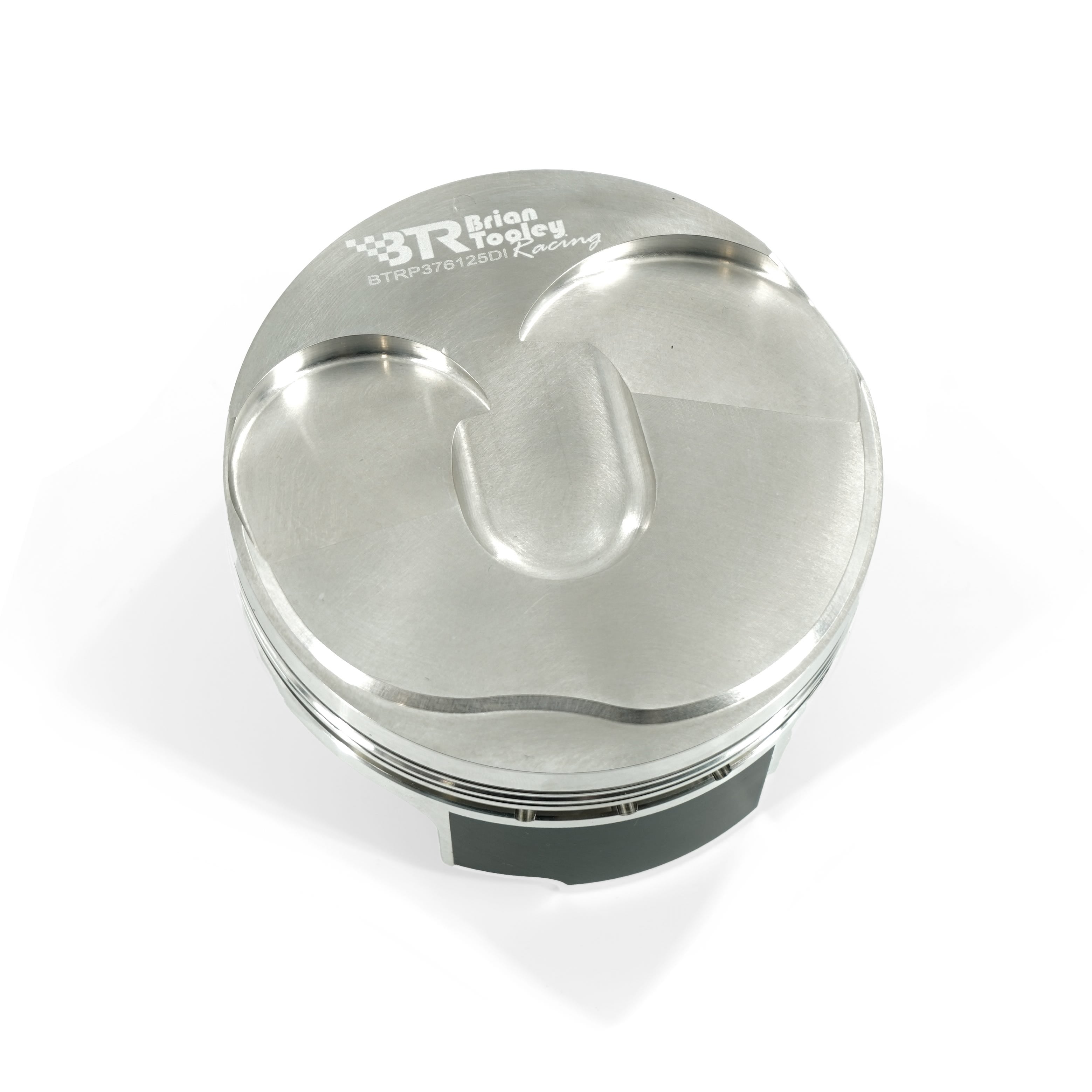

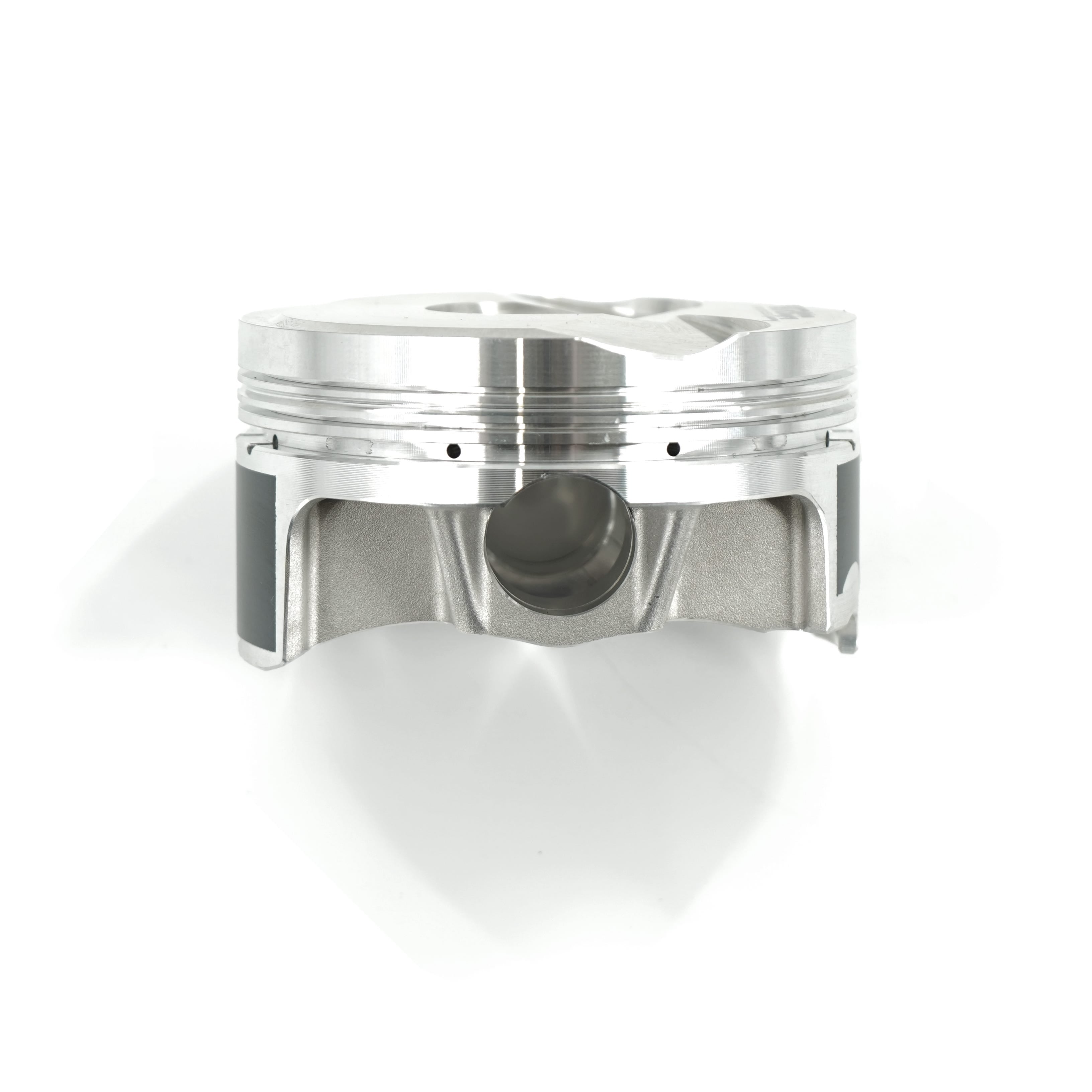

BTR L86/LT1 6.2 DROP IN PISTON SINGLE - 4.065" BORE - 3.622" STROKE - 6.125" ROD - BTRP376125DI-1
-4CC DOME - 11.5:1 CR
BTR and Wiseco have formed a partnership to bring an affordable, drop in piston to market for the LT1/L86 6.2 GEN V LT engine. Constructed out of 2618 forged aluminum material. Included in the set are .927" O.D. / S718 .200" wall piston pins and spiral locks. The valve pockets measure – .185” intake, .200” exhaust.
These pistons come with a Wiseco GFX .002" oversize 1.2 mm/1.2mm/3.0mm package. These include a Steel nitrated top and Ductile iron tapered underhook Napier second ring pack, designed to be file fit to let the end user dial in their specific ring gap . The piston skirts are moly coated for better lubricity during break in and quiet trouble free operation.
Must use BTR 4340 forged 6.125 connecting rods to achieve the proper balance/bobweight!
THIS LISTING IS FOR A SINGLE SERVICE PISTON WITH RINGS, PIN AND CLIPS - FOR PISTON SET SEE BTRP376125DI-8
Features
| EMS Code | EMS: Code 4 - This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. |
|---|---|
| BTR SKU | BTRP376125DI-1 |
| Length | 6.000000 |
| Width | 6.000000 |
| Height | 6.000000 |
| Weight | 1.000000 |
| Brand | Brian Tooley Racing |
| Part Type | Pistons |
| Piston Style | DI |
| Piston Volume | 4.0cc |
| Piston Bore Size | 4.065" |
| Piston Stroke | 3.622" |
| Piston Pin Size | .927" |
| Piston Rings Included | Yes |
| Rod Length | 6.125" |
| Engine Type | Gen V LT |
