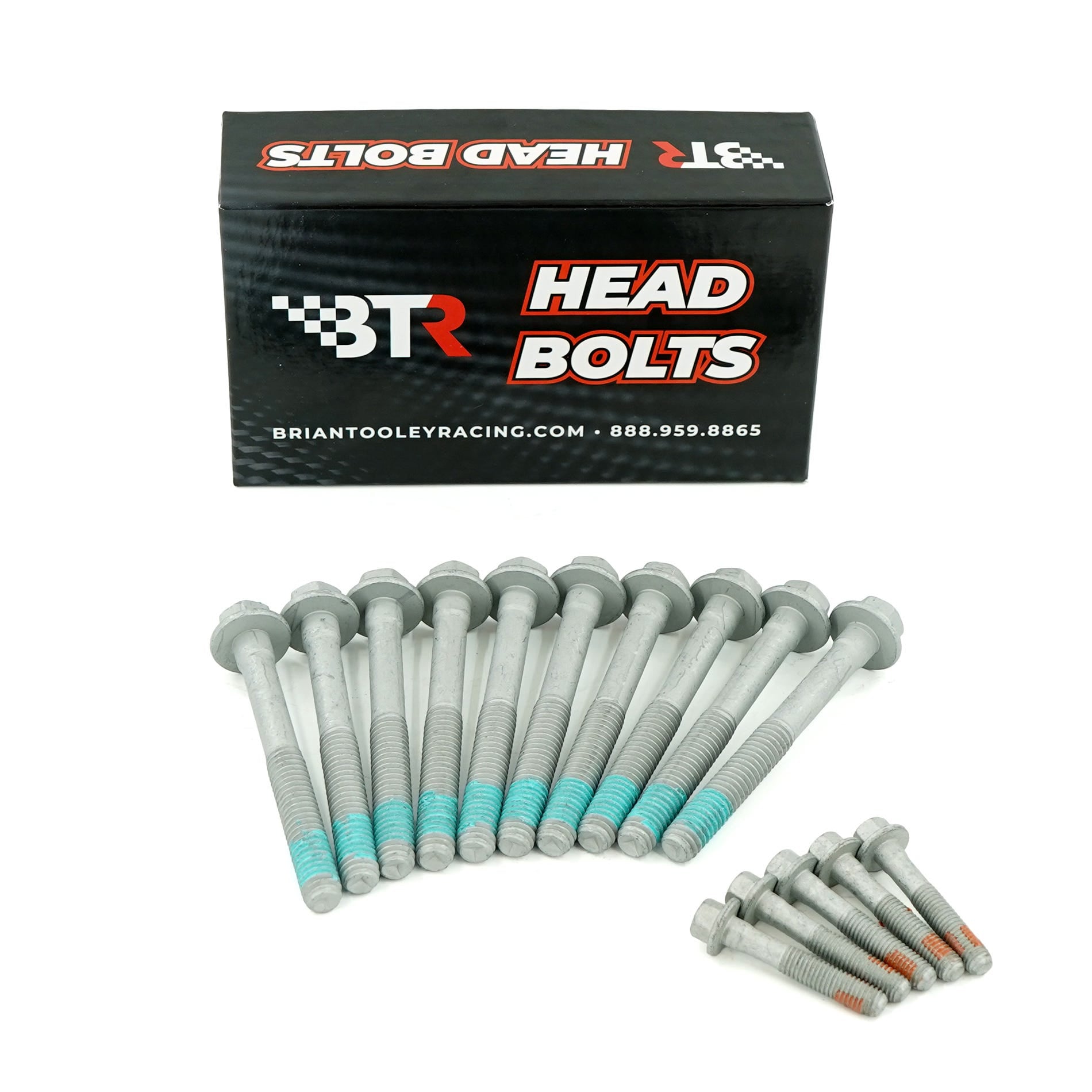

BTR HEAD BOLT KIT - 04+ LS - 2 NEEDED PER ENGINE - BTR00568

The BTR equivalent of the Chevrolet Performance 17800568 head bolt kit. Same great quality, lower price. What's better than that? Make sure you purchase TWO kits per engine if needed (one set services one cylinder head). Need 97-03 LS Head Bolts? Click HERE for BTR98545

This kit fits the following RPO code engines (4.8L, 5.3L, 6.0L, 6.2L, 7.0L):

• LS2 (6.0L)

• LS3 (6.2L)

• LS7 (7.0L)

• LSA (6.2L Supercharged)

• L76 (6.0L AFM)

• L77 (6.0L AFM)

• L98 (6.0L)

• LY2 (4.8L)

• LM7 (5.3L - late model/2004+)

• L33 (5.3L)

• LC9 (5.3L)

• LMG (5.3L)

• LY6 (6.0L)

• LQ4/LQ9 (6.0L - 2004+ models)

Key Notes for BTR00568 Fitment:

Production Date: Fits later model LS engines with late 2003 / 2004-up casting dates, specifically those with the shorter, equal-length blind head bolt holes.

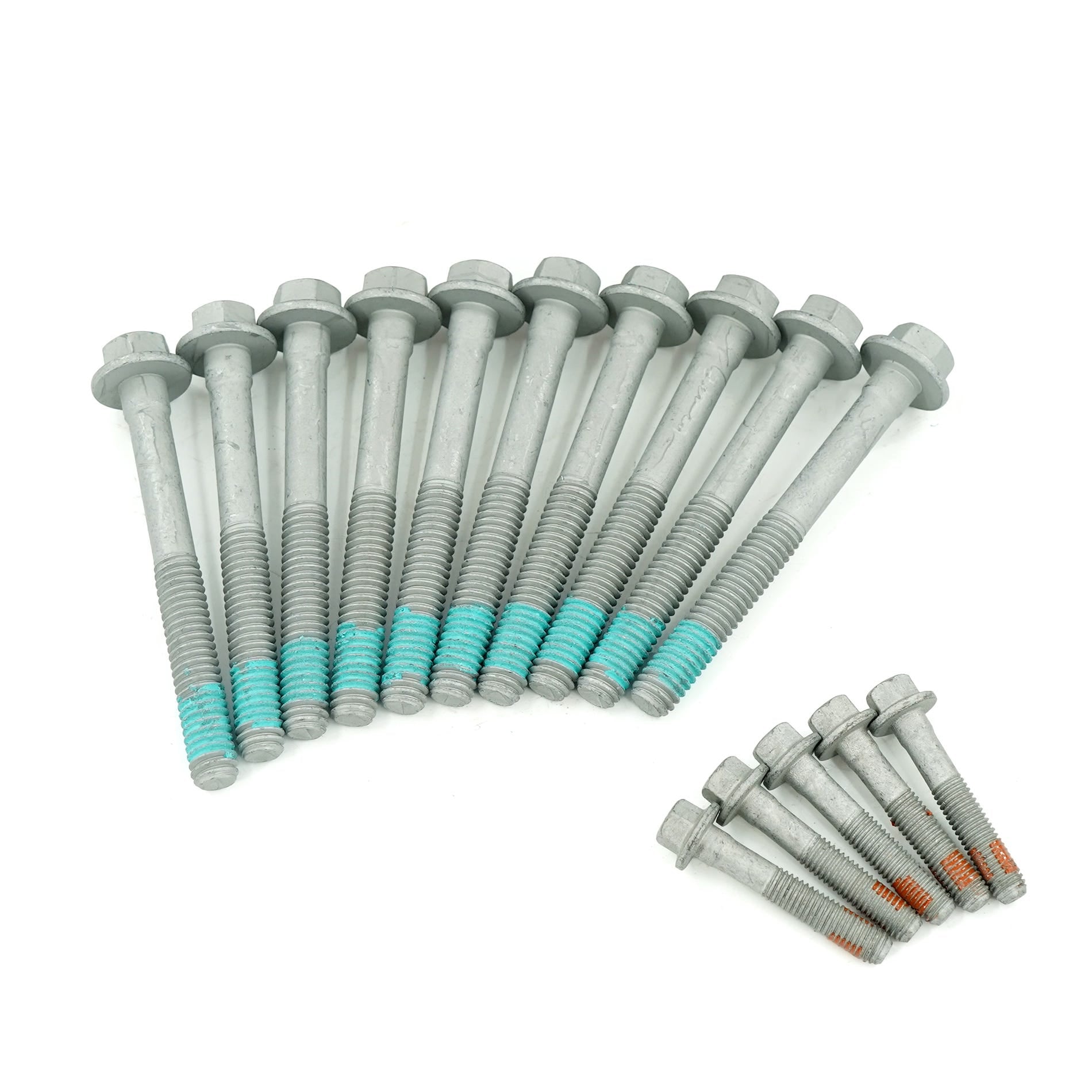

Quantity: This kit services one cylinder head. Two kits (2) are required for a complete engine overhaul. Long Bolts (10): M11\2.0 thread pitch, 100mm length.  Short Bolts (5): M8\1.25 thread pitch, 45mm length.

Usage: These are Torque-To-Yield (TTY) bolts and cannot be reused.

Features:
