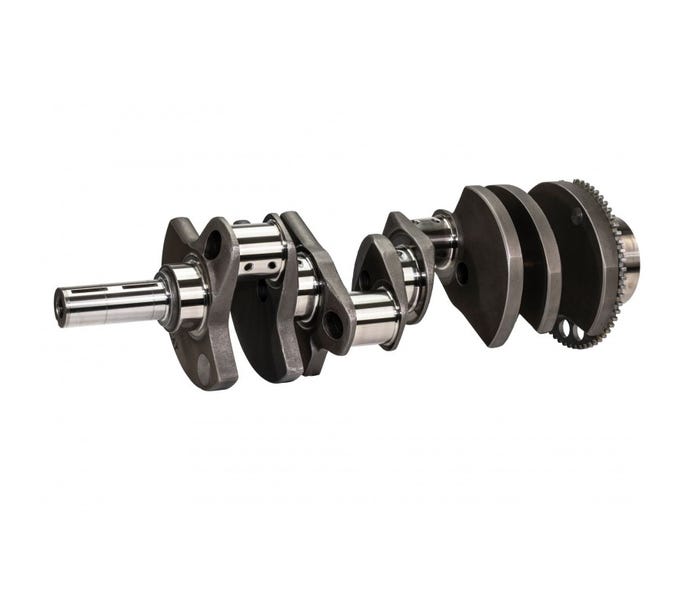

BTR's GenV LT Premium, 4340 Forged 4.00" stroke Crankshafts are available for the weekend Cars & Coffee crowd or to the Die-hard Grudge racers. Each crank is Core-Hardened using Nitride for improved strength, bearing life and size tolerances held to +/-.0002". BTR 4.000" stroke crankshafts include a 58 tooth Reluctor wheel. A standard wet sump snout and 8-bolt rear flange will allow you to bolt on your factory balancers & flywheels/flexplates or the many aftermarket pieces offered.
FEATURES:
- 2.100 rod journal diameter
- .125" radius on both the connecting rod journals and main journals for increased strength
- Chamfered oil holes for improved oiling
- Leading edge chamfer and radius on counterweights
- BTR balanced rotating assembles are available!
NOTE: BTR Gen V LT crankshafts require a modified, chamfered end lower timing chain sprocket designed for use with aftermarket Gen V crankshafts - PART # BTR31216
Features:
| EMS Code | EMS: Code 4 - This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. |
|---|---|
| BTR SKU | BTRCRA4000F258 |
| Length | 36.000000 |
| Width | 10.000000 |
| Height | 12.000000 |
| Weight | 57.000000 |
| Brand | Brian Tooley Racing |
| Part Type | Crankshaft |
| Engine Type | Gen V LT |
| Crankshaft Stroke | 4.000" STROKE |
| Reluctor Wheel | GM 58X |
