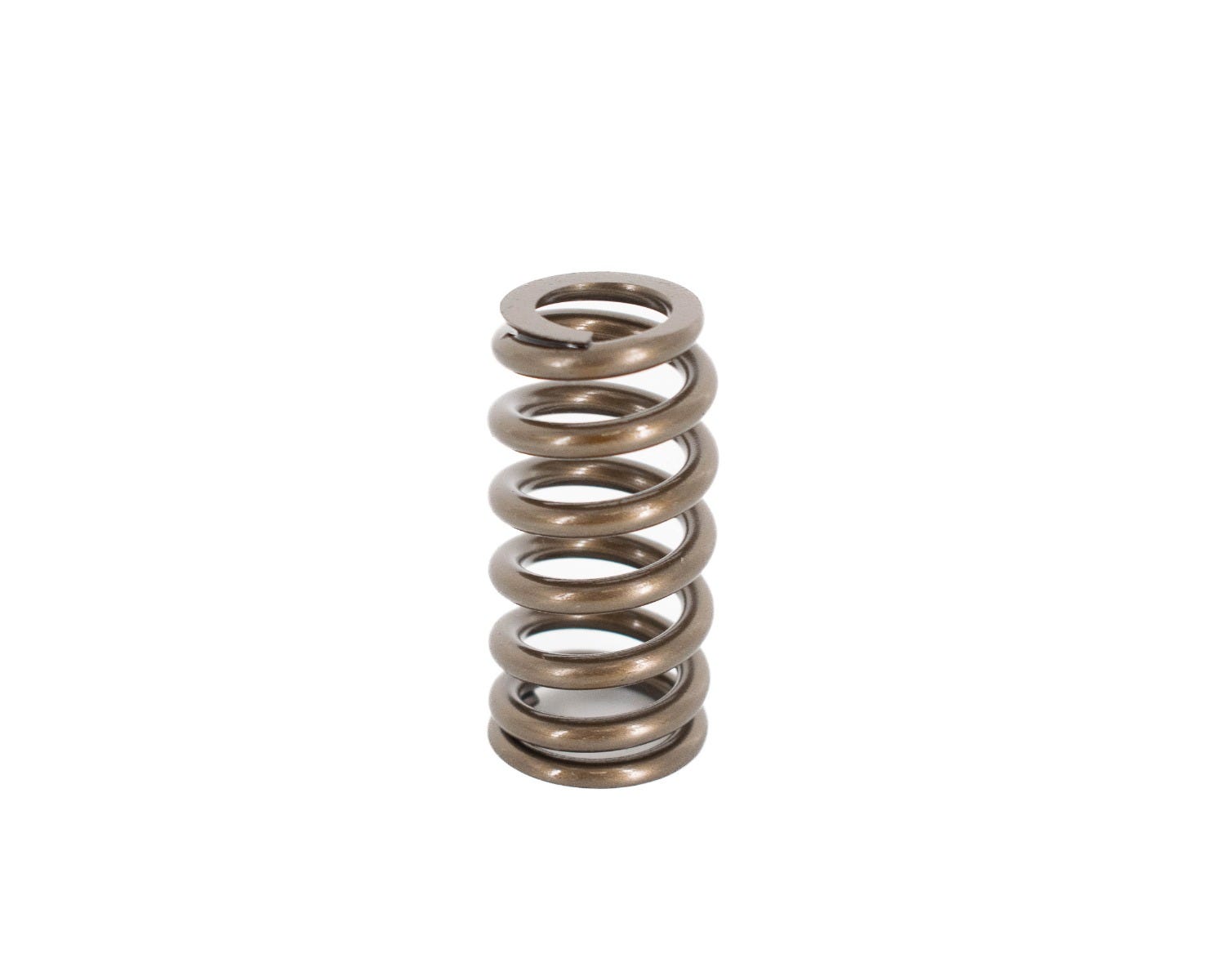

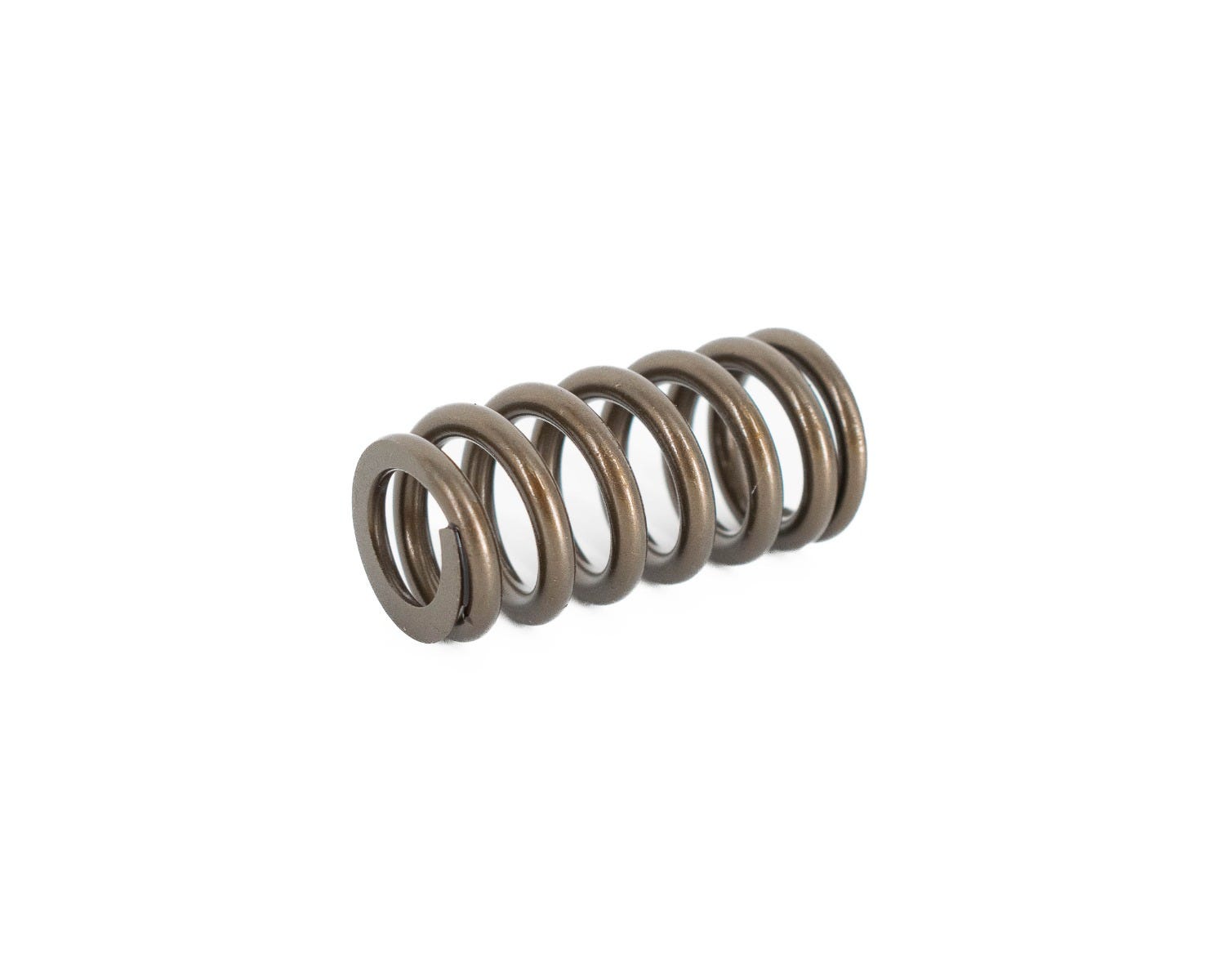

BTR FORD 3V MODULAR SPRING - .550 LIFT - SOLD INDIVIDUALLY - SP007-1
BTR's drop-in valve springs for 3v Modular 4.6 Ford engines will help take your late model Ford to the next level. These springs support up to .550” lift and use OEM hardware (not included)
- 95 lbs @ 1.690” Installed pressure / height
- 230 lbs @ 1.145” Open pressure / height
- Coil bind @ 1.095”
- Inner I.D. 0.565" TOP
- Inner O.D. 0.88" TOP
- Outer I.D 0.71" BOTTOM
- Outer O.D. 1.025" BOTTOM
Features:
| BTR SKU | SP007-1 |
|---|---|
| Length | 4.000000 |
| Width | 4.000000 |
| Height | 1.000000 |
| Weight | 1.000000 |
| Brand | Brian Tooley Racing |
| Part Type | Valve Spring |
| Engine Type | 3V Modular Ford |
| Spring Type | SINGLE |
