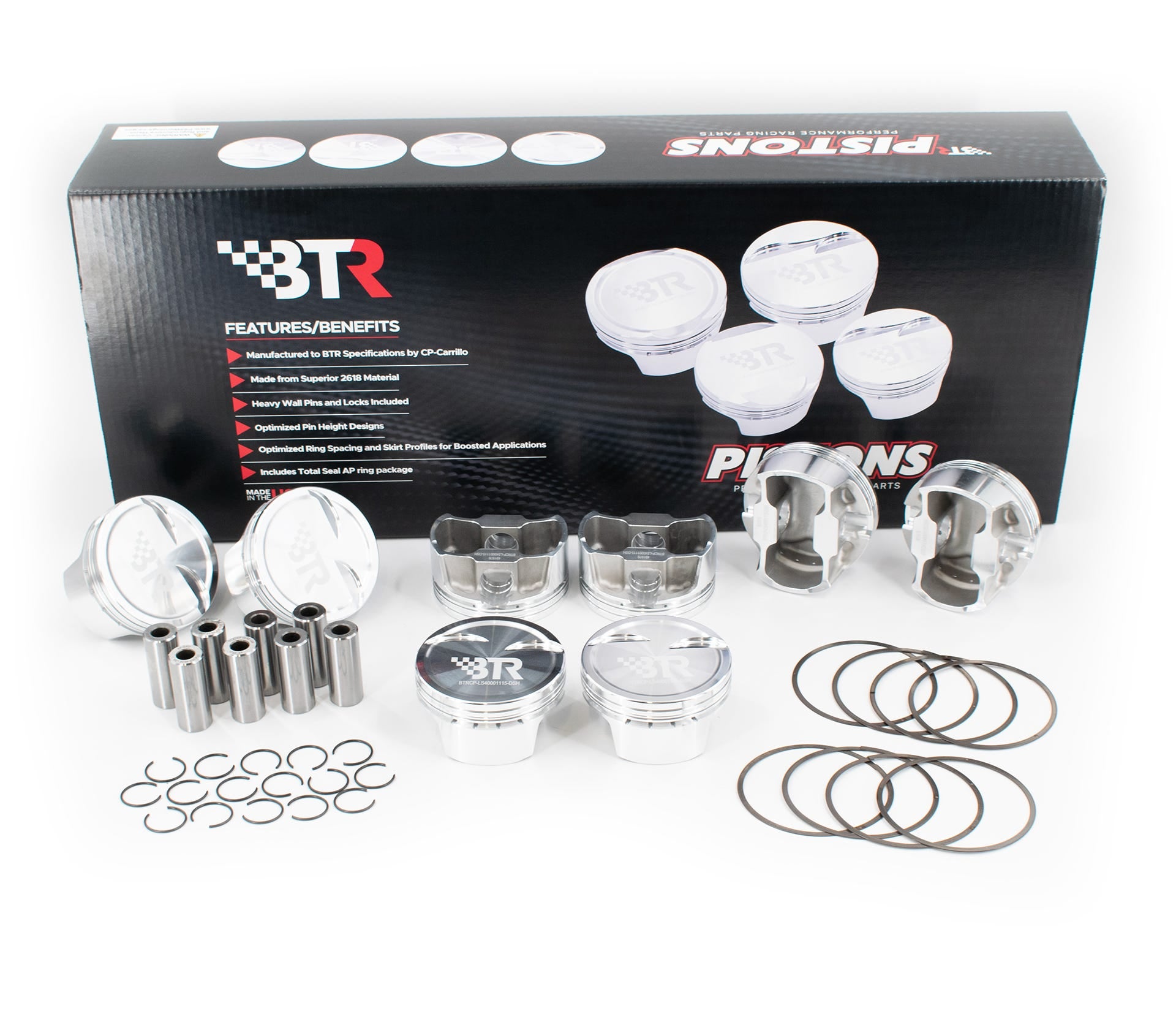

BTR has joined forces with CP-Carrillo and Total Seal to offer a new solution for Gen III Hemi and LS/LT engine builders looking for a tough boost-ready piston kit featuring high-quality American made components at a price that won't break the bank! All pistons are made in the USA, manufactured from 2618 alloy for strength and durability. Features include--

- Balanced to + or – 1 gram
- Dual forced pin oilers
- Accumulator Grooves
- Forged side relief
- Heavy Wall .200" Chromoly wrist pins with wire locks
- FEA designed forging
- Tight tolerances

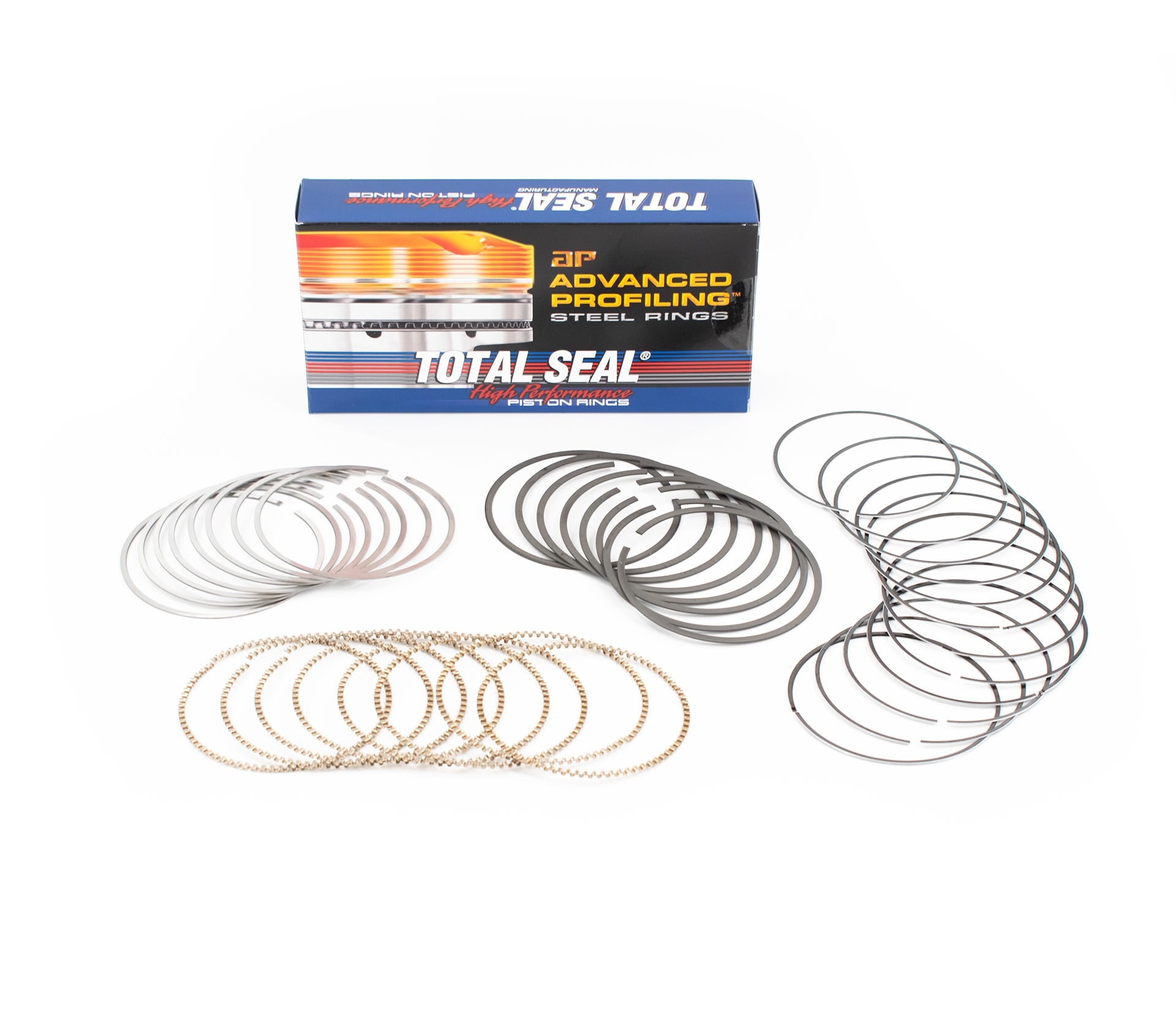

- Premium Total Seal AP ring set included (Comes standard with 1.2mm x 1.2mm x 3.0mm ring pack that consists of 440B Stainless Steel Tops with a C33 Face Coating, Taper Hook Groove Napier second rings and a 3-piece soft-nitrided rail flex vent oils, specially designed for severe duty applications such as nitrous blowers and turbo engines.)

Note on rod small end widths - These piston forgings have a minimum pin boss span of 1.060, this is because they also use a 2.250 long wrist pin, to this gives the wrist pin .595 of engagement In the pin bore. Many aftermarket rods including BTR's 6.125 LS rod set (BTRROD6125H1-8) have a small end width of 1.060 or more and will need to have the small end narrowed by a respectable machine shop by .080-.100" for proper fitment. Carrillo & Bullet rods use a .900-1.000 wide small end, so there is no need for additional small end clearancing.
