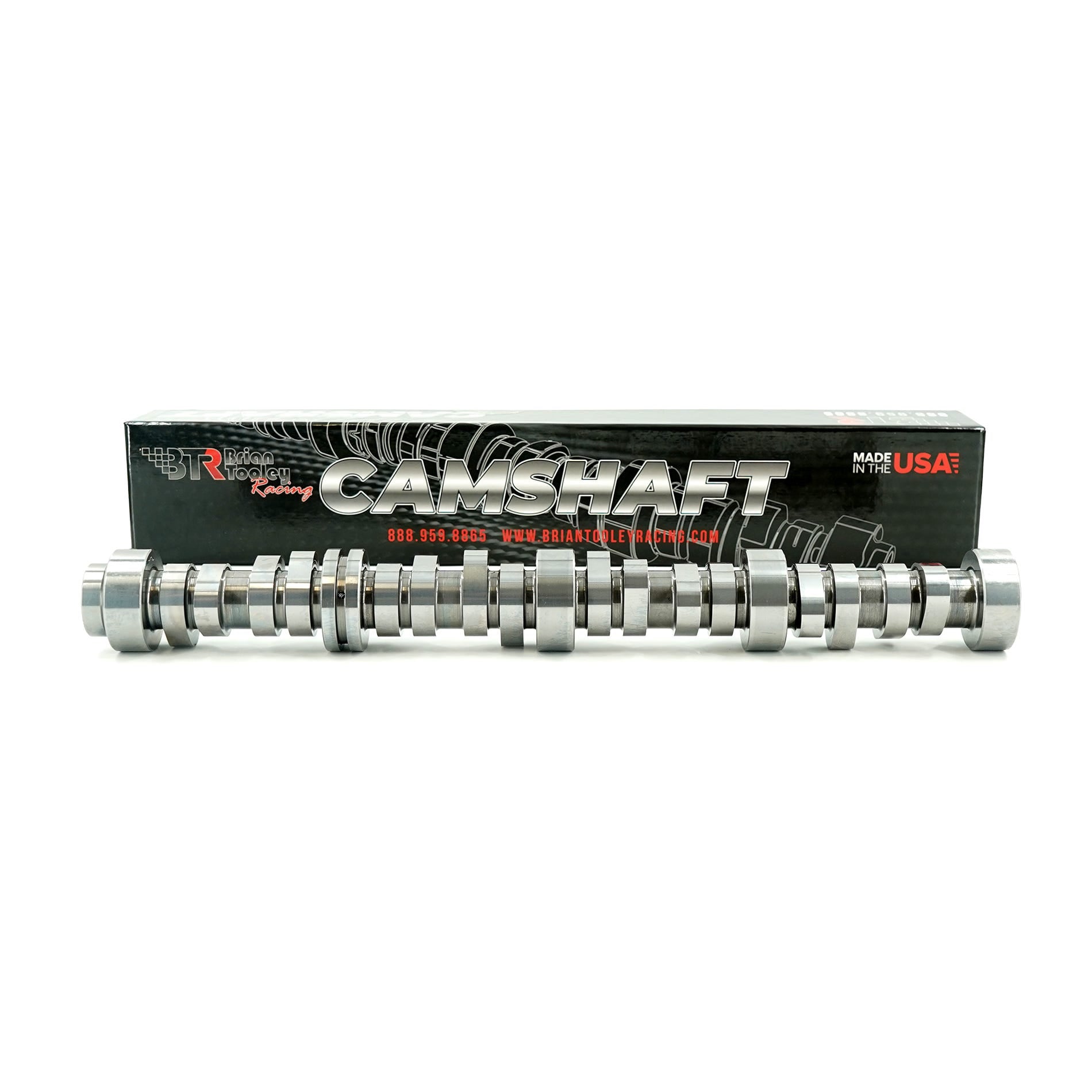

BTR 5.3 LS DOD CONVERSION CAMSHAFT - LIKE 12689035 - BTR-89035
- Duration at .050" inch Lift: 190 deg. int. / 191 deg. exh.
- Valve Lift with Factory Rocker Arm Ratio: 0.466" int. / 0.457" exh.
- Lobe Separation (degrees): 114
- Camshaft Gear Attachment: 1-bolt
We've got the cam you need if all you need is that pesky DOD gone from your Gen 4 5.3 LS!
Designed to work with OEM valve springs/pushrods in the DOD-equipped 5.3 trucks. These camshafts use the same valve events as stock non-DOD 5.3L trucks. Since they come as a single-bolt style, new timing gear won't be necessary. Just swap cams and additional DOD delete parts and you're ready to roll! A fairly stock truck shouldn't require dyno tuning; however, the DOD system must be disabled in ECU for proper functionality. It is advised to consult with your tuner for more information.
Features
| EMS Code | EMS: Code 3 |
|---|---|
| BTR SKU | BTR-89035 |
| Length | 24.000000 |
| Width | 3.000000 |
| Height | 3.000000 |
| Weight | 15.000000 |
| Brand | Brian Tooley Racing |
| Part Type | Camshaft |
| Engine Type | Gen III/Gen IV LS |
| Engine Combination | DOD CONVERSION - N/A |
| Camshaft Style | HYDRAULIC ROLLER |
| Cam Bolt Style | SINGLE BOLT |
