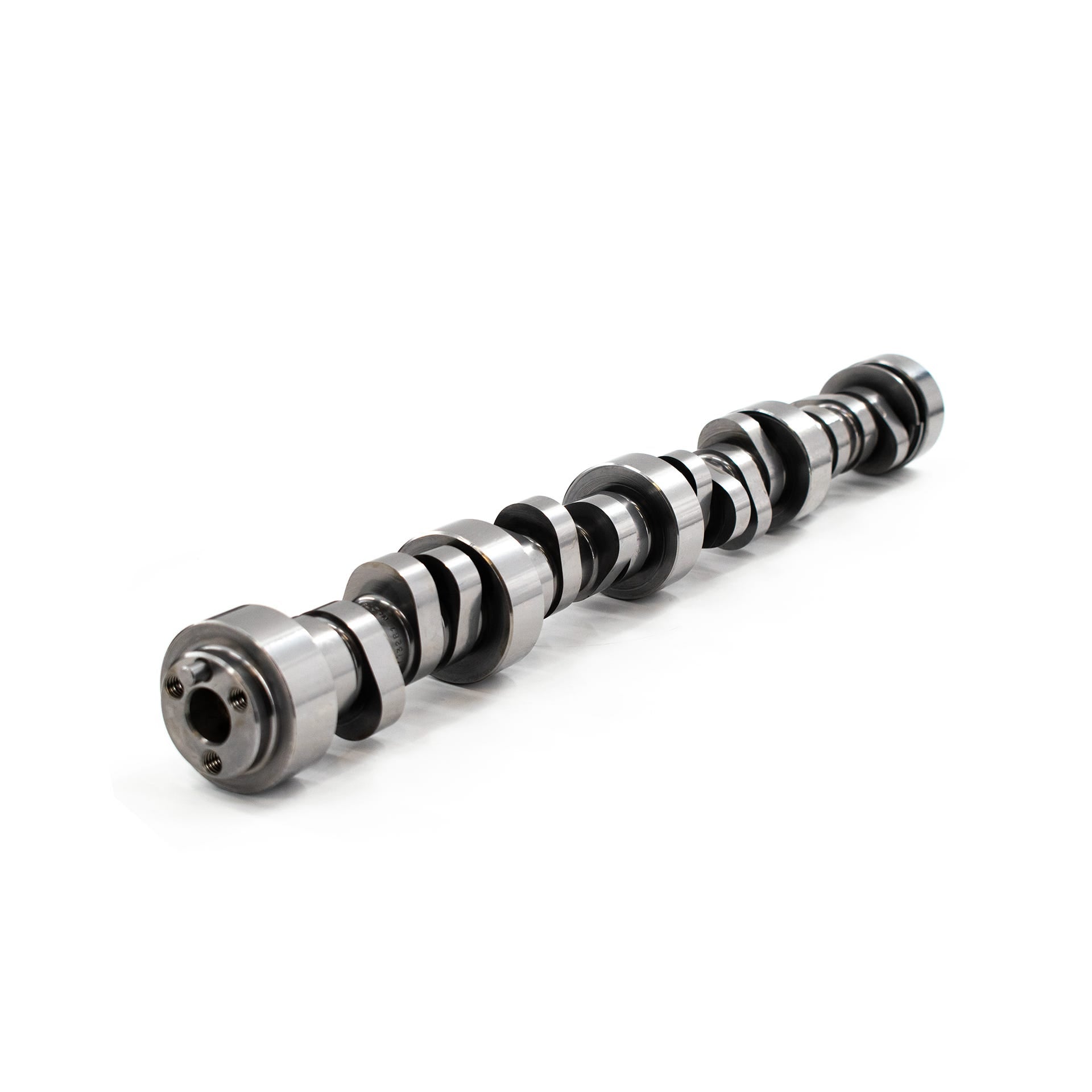

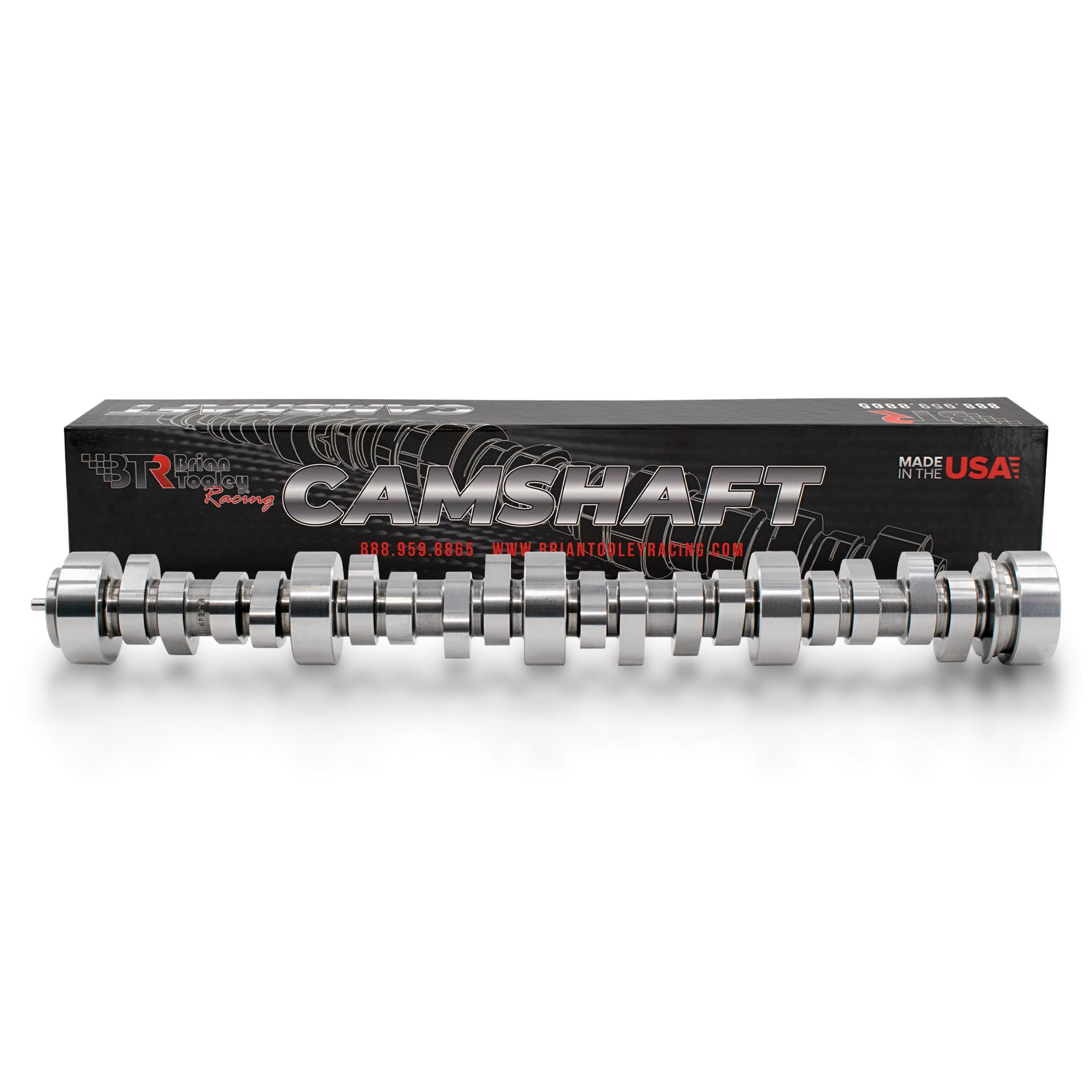

BTR 400+ LS SMALL TWIN TURBO CAMSHAFT
237/25X .619"/.619" 117 LSA
INTAKE LOBE LIFT @ TDC: 0.05840
The new BTR Small Twin Turbo cam was designed for use with smaller twin 66-76 mm setups or up to a single 94mm turbo in 388-427 cubic inch combos. This cam is recommended for street/strip type applications looking for more power and rpm , and offers an aggressive idle. This cam uses ultra stable lobes for higher RPM potential, and was designed to be extremely durable at high rpm when combined with a lightweight valvetrain.
Due to higher rpm potential combined with greater cylinder pressure from boost we recommend the use of our SK703 spring kits and larger diameter hardened pushrods along with a quality lifter such as a Johnson ST2116LSR or ST2126LSR.
Features
| EMS Code | EMS: Code 3 |
|---|---|
| BTR SKU | BTR-STT400+ |
| Length | 24.000000 |
| Width | 3.000000 |
| Height | 3.000000 |
| Weight | 15.000000 |
| Brand | Brian Tooley Racing |
| Part Type | Camshaft |
| Engine Type | Gen III/Gen IV LS |
| Engine Combination | TWIN TURBOCHARGED |
| Camshaft Style | HYDRAULIC ROLLER |
| Cam Bolt Style | THREE BOLT |
