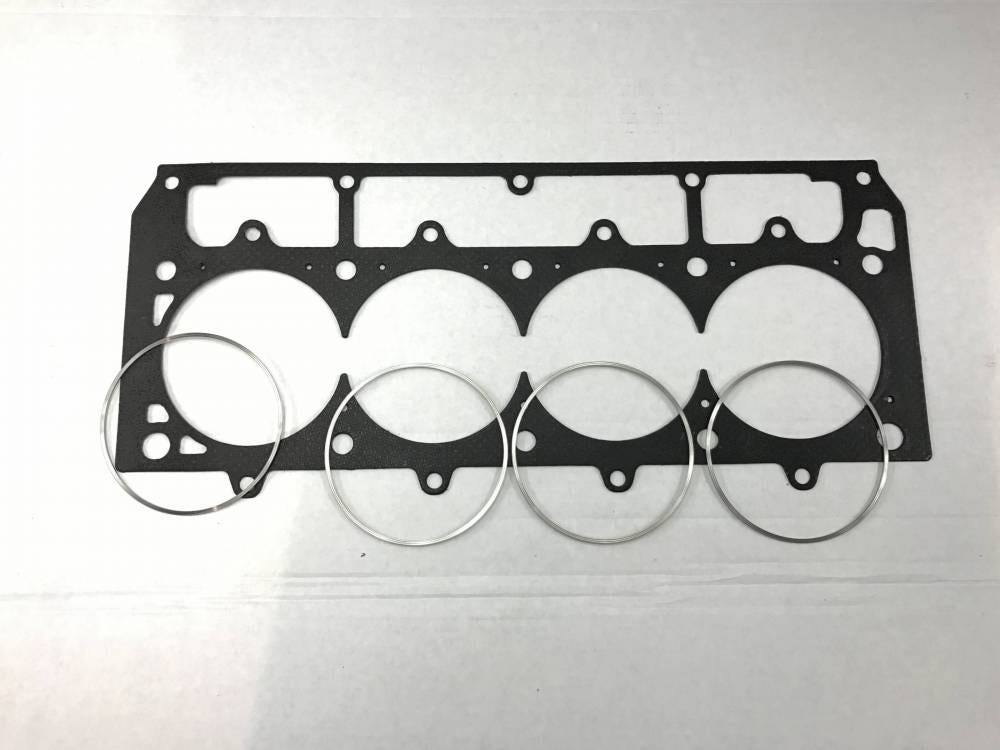

ATHENA-SCE HEAD GASKET - 6 BOLT LSX - W/ VULCAN CUT-RING - 4.150" - 0.059" - RIGHT - CR191559R
This Is the ultimate seal for your LS engine! Available in 3.997", 4.056", 4.150", and 4.174" bore sizes. These gaskets use a stainless o-ring that cuts into the head to provide the strongest seal available for high boost or high compression engines. Because the o-ring cuts into the aluminum head, when you pull the head off you will have to surface .0003"- .0005" before reinstalling the head..
Features:
| BTR SKU | CR191559R |
|---|---|
| Length | 24.000000 |
| Width | 10.000000 |
| Height | 0.250000 |
| Weight | 1.300000 |
| Brand | SCE |
| Part Type | Head Gasket |
| Engine Type | Gen III/Gen IV LS |
| Bolt Count | 6-BOLT |
| Bore Opening | 4.150" |
| Compressed Thickness | .059" |
| Material | COMPOSITE |
| Quantity | SOLD INDIVIDUALLY |
