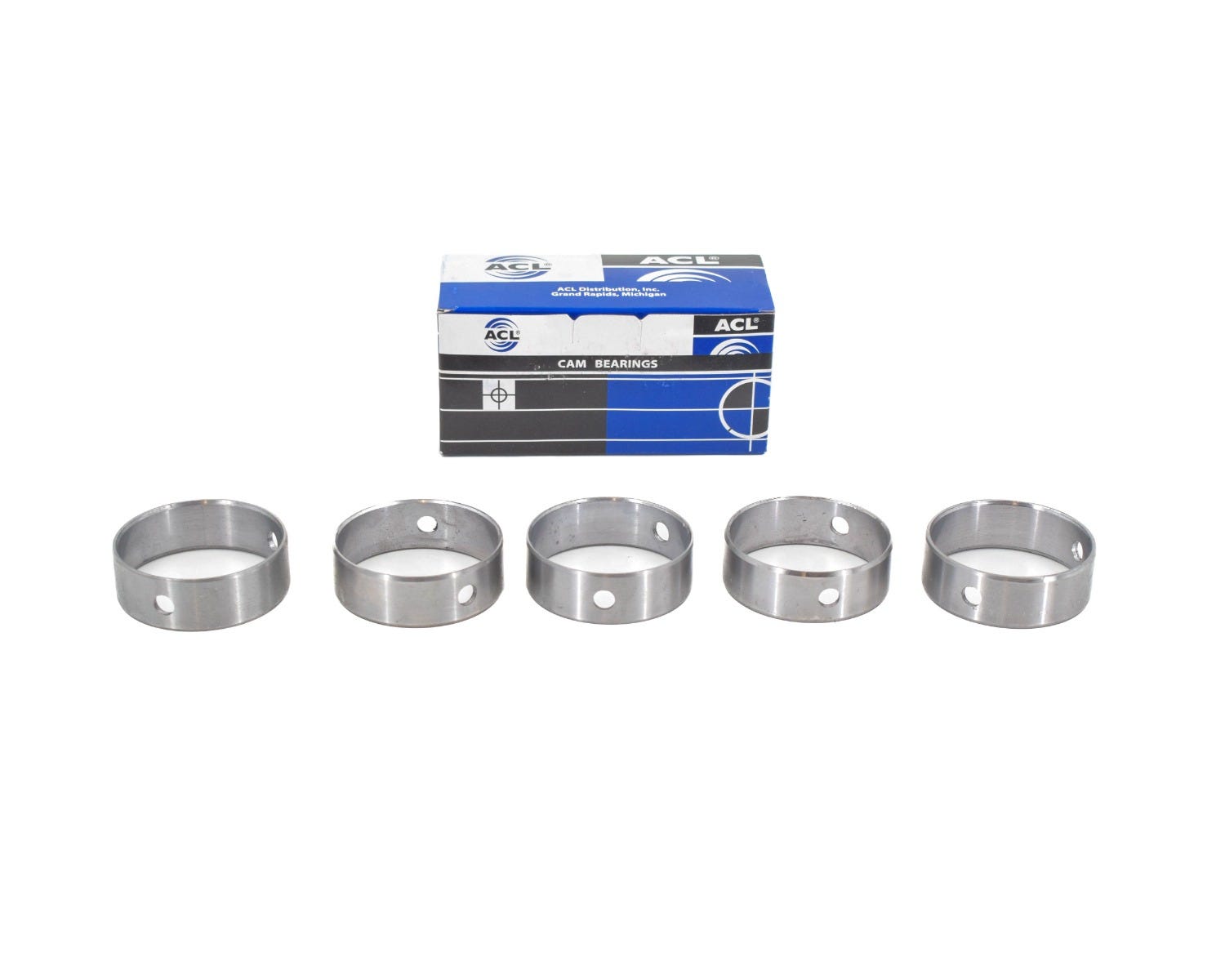

ACL CAM BEARING SET - WIDE DESIGN 2006-2018 LS BLOCKS - 5C1002S-00

5.3/6.2/7.0L Gen IV LS, Wider (3rd) design (.775" Wide) Fits 2006-2018 LS where the block housing bore on positions 1 and 5 measures 2.3470" & bearing width is: 0.775"

ACL Performance offers cam bearing sets for a wide range of vehicles from 1955 and up. The high-performance tri-metal engine bearings are designed to withstand higher RPM conditions. Each direct-fit replacement bearing features a high-strength overlay plate with reduced thickness for improved fatigue properties. Order the set recommended for your year/make and engine application.

Additional details:

*Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
* Increased crush for improved bearing retention
* Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and their housings
* Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of a hydrodynamic oil film
* 3/4 in. grooved main bearings GROOVED MAIN BEARINGS to optimize bearing load carrying surface area and oil flow to the conrod bearings
* Tight, consistent wall tolerances to help you maintain consistent clearances
* Enlarged ID chamfers on bearing edges where required to accommodate a large fillet radius on performance crankshafts

Interchanges with Durabond CH-25 cam bearings.

Features
